Tutorial

Android Internal Storage Example Tutorial

Published on August 3, 2022
author

Anupam Chugh

Android Internal Storage Example Tutorial

Today we will look into android internal storage. Android offers a few structured ways to store data. These include

In this tutorial we are going to look into the saving and reading data into files using Android Internal Storage.

Android Internal Storage

Android Internal storage is the storage of the private data on the device memory. By default, saving and loading files to the internal storage are private to the application and other applications will not have access to these files. When the user uninstalls the applications the internal stored files associated with the application are also removed. However, note that some users root their Android phones, gaining superuser access. These users will be able to read and write whatever files they wish.

Reading and Writing Text File in Android Internal Storage

Android offers openFileInput and openFileOutput from the Java I/O classes to modify reading and writing streams from and to local files.

  • openFileOutput(): This method is used to create and save a file. Its syntax is given below:

    FileOutputStream fOut = openFileOutput("file name",Context.MODE_PRIVATE);


    The method openFileOutput() returns an instance of FileOutputStream. After that we can call write method to write data on the file. Its syntax is given below:

    String str = "test data";
    fOut.write(str.getBytes());
    fOut.close();

  • openFileInput(): This method is used to open a file and read it. It returns an instance of FileInputStream. Its syntax is given below:

    FileInputStream fin = openFileInput(file);


    After that, we call read method to read one character at a time from the file and then print it. Its syntax is given below:

    int c;
    String temp="";
    while( (c = fin.read()) != -1){
       temp = temp + Character.toString((char)c);
    }

    fin.close();


    In the above code, string temp contains all the data of the file.

  • Note that these methods do not accept file paths (e.g. path/to/file.txt), they just take simple file names.

Android Internal Storage Project Structure

android internal storage example, android file storage

Android Internal Storage Example Code

The xml layout contains an EditText to write data to the file and a Write Button and Read Button. Note that the onClick methods are defined in the xml file only as shown below: activity_main.xml

<RelativeLayout xmlns:android="https://schemas.android.com/apk/res/android"
    xmlns:tools="https://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    >

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentRight="true"
        android:padding="5dp"
        android:text="Android Read and Write Text from/to a File"
        android:textStyle="bold"
        android:textSize="28sp" />

    <EditText
        android:id="@+id/editText1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentLeft="true"
        android:layout_alignParentRight="true"
        android:layout_below="@+id/textView1"
        android:layout_marginTop="22dp"
        android:minLines="5"
        android:layout_margin="5dp">

        <requestFocus />
    </EditText>

    <Button
        android:id="@+id/button1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Write Text into File"
        android:onClick="WriteBtn"
        android:layout_alignTop="@+id/button2"
        android:layout_alignRight="@+id/editText1"
        android:layout_alignEnd="@+id/editText1" />

    <Button
        android:id="@+id/button2"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Read Text From file"
        android:onClick="ReadBtn"
        android:layout_centerVertical="true"
        android:layout_alignLeft="@+id/editText1"
        android:layout_alignStart="@+id/editText1" />

</RelativeLayout>

The MainActivity contains the implementation of the reading and writing to files as it was explained above.

package com.journaldev.internalstorage;


import android.os.Bundle;
import android.app.Activity;
import android.view.View;
import android.widget.EditText;
import android.widget.Toast;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.InputStreamReader;
import java.io.OutputStreamWriter;

public class MainActivity extends Activity {

    EditText textmsg;
    static final int READ_BLOCK_SIZE = 100;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        textmsg=(EditText)findViewById(R.id.editText1);
    }

    // write text to file
    public void WriteBtn(View v) {
        // add-write text into file
        try {
            FileOutputStream fileout=openFileOutput("mytextfile.txt", MODE_PRIVATE);
            OutputStreamWriter outputWriter=new OutputStreamWriter(fileout);
            outputWriter.write(textmsg.getText().toString());
            outputWriter.close();

            //display file saved message
            Toast.makeText(getBaseContext(), "File saved successfully!",
                    Toast.LENGTH_SHORT).show();

        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    // Read text from file
    public void ReadBtn(View v) {
        //reading text from file
        try {
            FileInputStream fileIn=openFileInput("mytextfile.txt");
            InputStreamReader InputRead= new InputStreamReader(fileIn);

            char[] inputBuffer= new char[READ_BLOCK_SIZE];
            String s="";
            int charRead;

            while ((charRead=InputRead.read(inputBuffer))>0) {
                // char to string conversion
                String readstring=String.copyValueOf(inputBuffer,0,charRead);
                s +=readstring;
            }
            InputRead.close();
            textmsg.setText(s);


        } catch (Exception e) {
            e.printStackTrace();
        }
    }
}

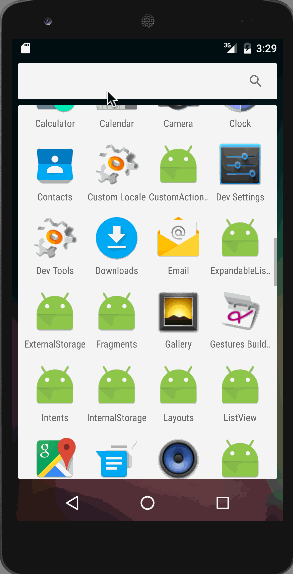

Here, a toast is displayed when data is successfully written into the internal storage and the data is displayed in the EditText itself on reading the data from the file. The image shown below is the output of the project. The image depicts text being written to the internal storage and on clicking Read it displays back the text in the same EditText. android internal storage, android file storage, Android OpenFileOutput

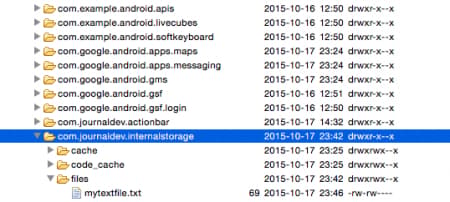

Where is the file located?

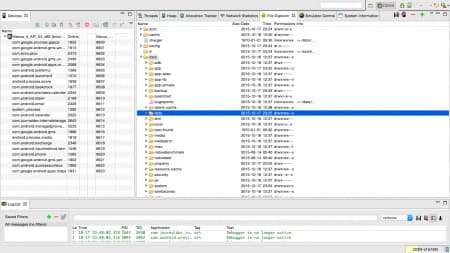

To actually view the file open the Android Device Monitor from Tools->Android->Android Device Monitor. The file is present in the folder data->data->{package name}->files as shown in the images below: android file storage, internal storage, Android OpenFileOutput The file “mytextfile.txt” is found in the package name of the project i.e. com.journaldev.internalstorage as shown below: android file storage, internal storage, Android OpenFileOutput Download the final project for android internal storage example from below link.

Download Android Internal Storage Example Project
