Cloudflare is a service that sits between the visitor and the website owner’s server, acting as a reverse proxy for websites. Cloudflare provides a Content Delivery Network (CDN), as well as DDoS mitigation and distributed domain name server services.
Nginx is a popular web server responsible for hosting some of the largest and highest-traffic sites on the internet. It’s common for organizations to serve websites with Nginx and use Cloudflare as a CDN and DNS provider.
In this tutorial you will secure your website served by Nginx with an Origin CA certificate from Cloudflare and then configure Nginx to use authenticated pull requests. The advantages of using this setup are that you benefit from Cloudflare’s CDN and fast DNS resolution while ensuring that all connections pass through Cloudflare. This prevents any malicious requests from reaching your server.
To complete this tutorial, you’ll need the following:
sudo
non-root user and a firewall.The Cloudflare Origin CA lets you generate a free TLS certificate signed by Cloudflare to install on your Nginx server. By using the Cloudflare generated TLS certificate you can secure the connection between Cloudflare’s servers and your Nginx server.

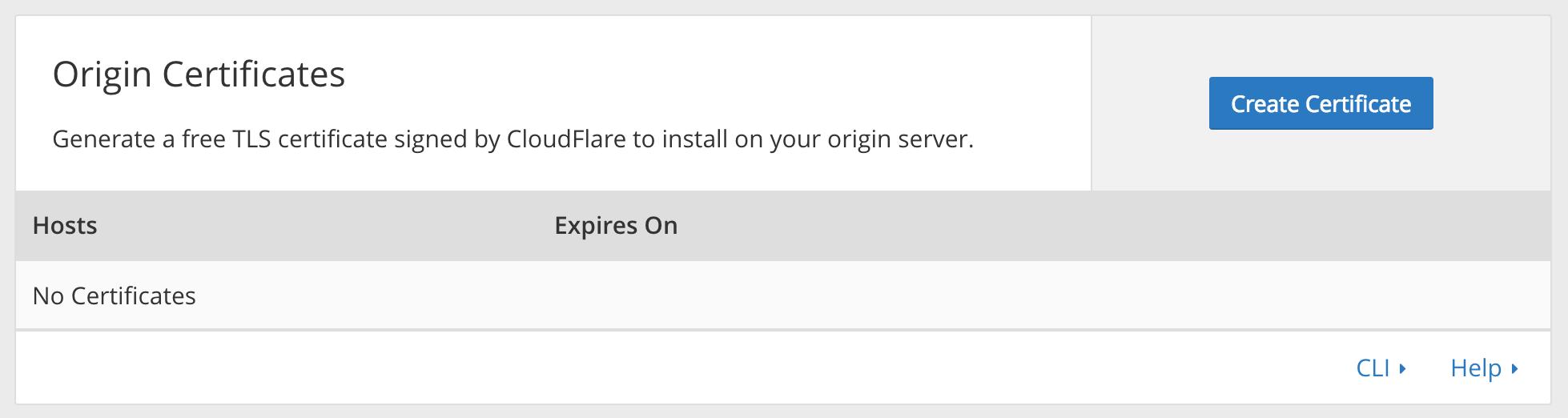

To generate a certificate with Origin CA, log in to your Clouflare account in a web browser. Select the domain that you want to secure and navigate to the SSL/TLS section of your Cloudflare dashboard. From there, navigate to the Origin Server tab and click on the Create Certificate button:

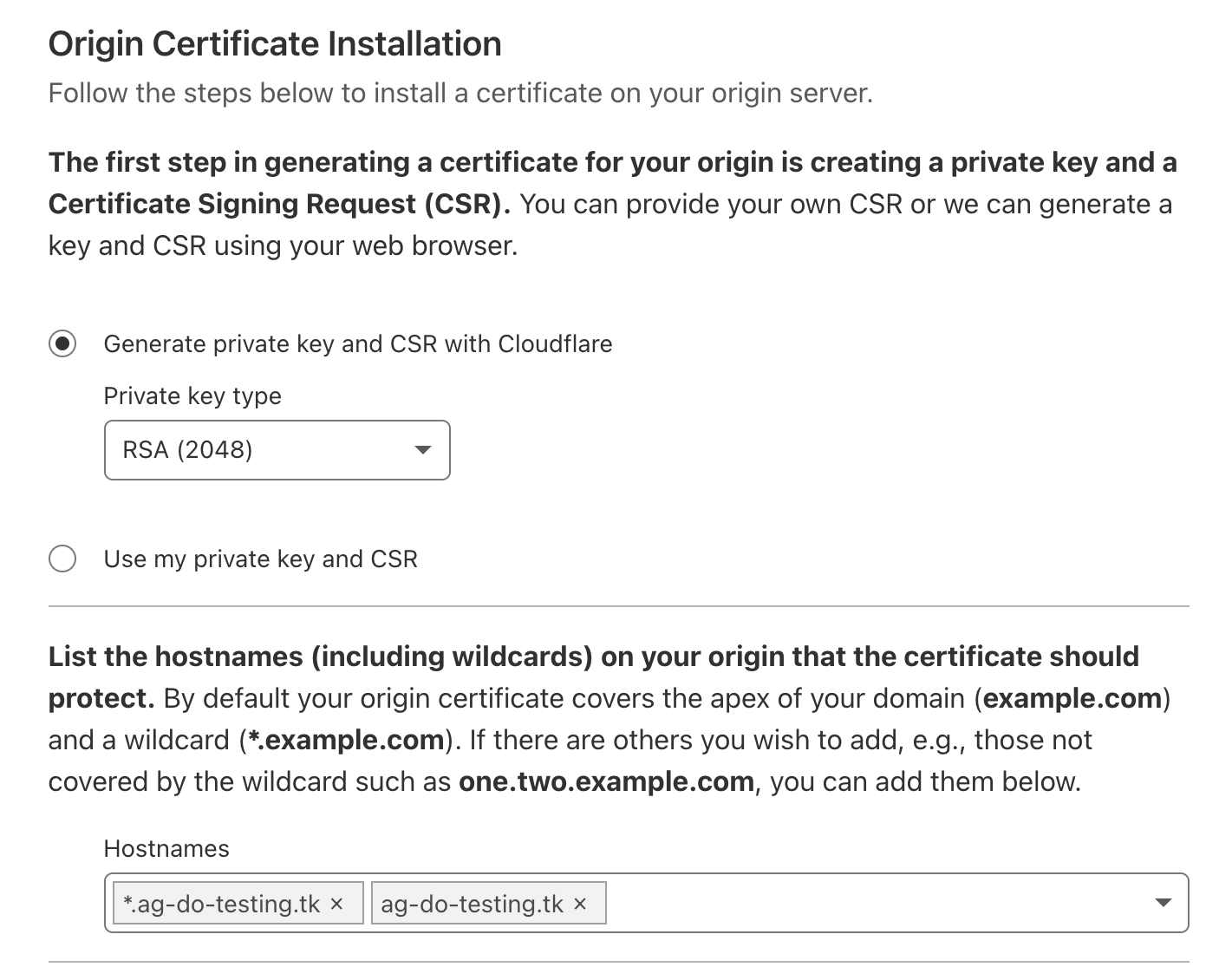

Leave the default option of Let Cloudflare generate a private key and a CSR selected.

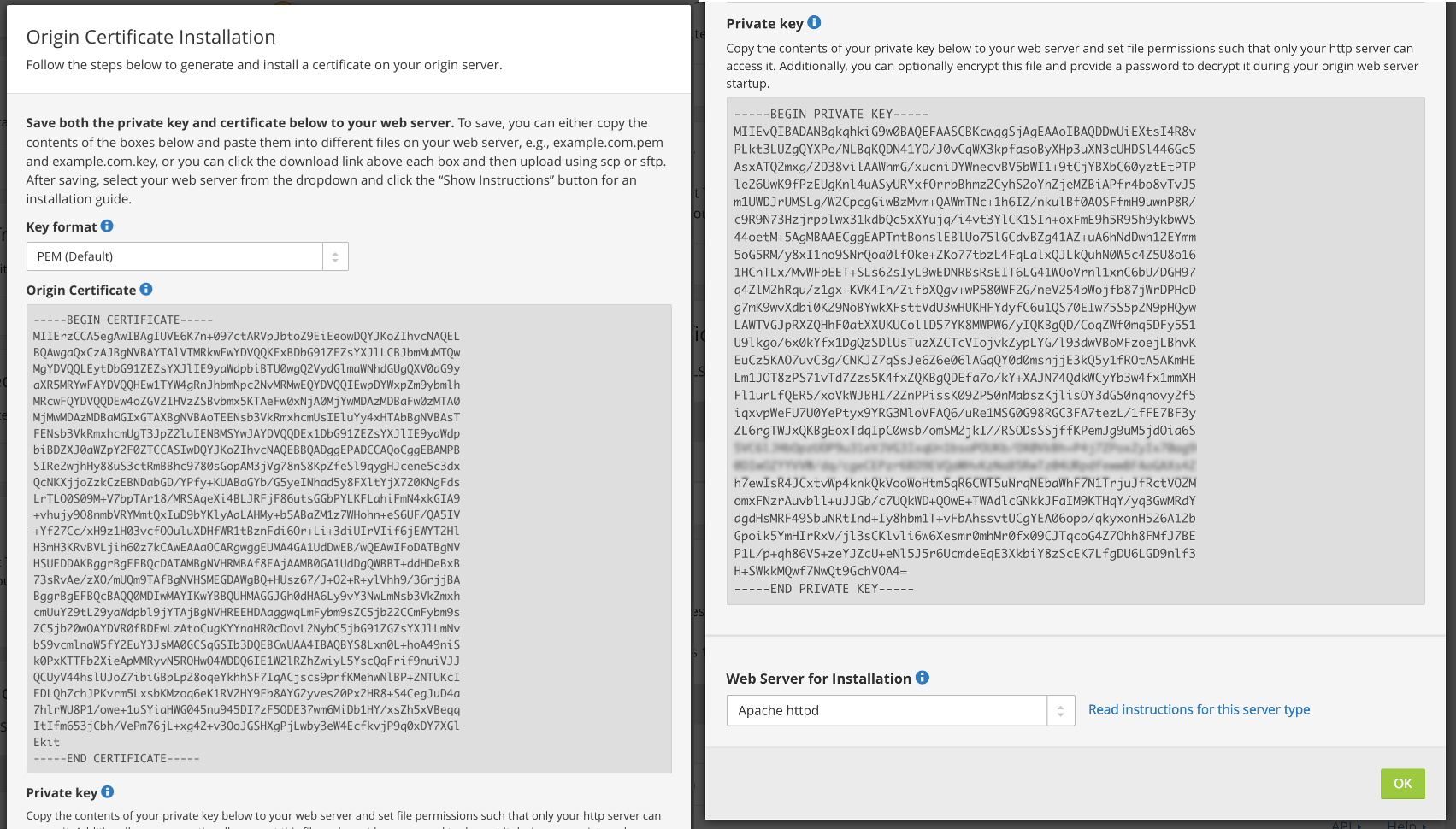

Click Next and you will see a dialog with the Origin Certificate and Private key. You need to transfer both the origin certificate and private key from Cloudflare to your server. For security reasons, the Private Key information will not be displayed again, so copy the key to your server before clicking Ok.
We’ll use the /etc/ssl
directory on the server to hold the origin certificate and the private key files. The folder already exists on the server.
First, copy the contents of the Origin Certificate displayed in the dialog box in your browser.
Then, on your server, open /etc/ssl/cert.pem
in your preferred text editor:
- sudo nano /etc/ssl/cert.pem
Add the certificate contents into the file. Then save and exit the editor.
Then return to your browser and copy the contents of the Private key. Open the file /etc/ssl/key.pem
for editing:
- sudo nano /etc/ssl/key.pem
Paste the private key into the file, save the file, and exit the editor.
Note: Sometimes, when you copy the certificate and key from the Cloudflare dashboard and paste it into the relevant files on the server, blank lines are inserted. Nginx will treat such certificates and keys as invalid, so ensure that there are no blank lines in your files.
Warning: Cloudflare’s Origin CA Certificate is only trusted by Cloudflare and therefore should only be used by origin servers that are actively connected to Cloudflare. If at any point you pause or disable Cloudflare, your Origin CA certificate will throw an untrusted certificate error.
Now that you copied the key and certificate files to your server, you need to update the Nginx configuration to use them.
In the previous section, you generated an origin certificate and private key using Cloudlfare’s dashboard and saved the files to your server. Now you’ll update the Nginx configuration for your site to use the origin certificate and private key to secure the connection between Cloudflare’s servers and your server.
First, make sure that UFW will allow HTTPS traffic. Enable Nginx Full
, which will open both port 80
(HTTP) and port 443
(HTTPS):
- sudo ufw allow 'Nginx Full'
Now reload UFW:
- sudo ufw reload
Finally, check that your new rules are allowed and that UFW is active:
- sudo ufw status
You will see an output like this:
OutputStatus: active
To Action From
-- ------ ----
OpenSSH ALLOW Anywhere
Nginx Full ALLOW Anywhere
OpenSSH (v6) ALLOW Anywhere (v6)
Nginx Full (v6) ALLOW Anywhere (v6)
Now you are ready to adjust your Nginx server block. Nginx creates a default server block during installation. Remove it if it still exists, as you’ve already configured a custom server block for your domain:
- sudo rm /etc/nginx/sites-enabled/default
Next, open the Nginx configuration file for your domain:
- sudo nano /etc/nginx/sites-available/your_domain
The file should look like this:
server {
listen 80;
listen [::]:80;
root /var/www/your_domain/html;
index index.html index.htm index.nginx-debian.html;
server_name your_domain www.your_domain;
location / {
try_files $uri $uri/ =404;
}
}
We’ll modify the Nginx configuration file to do the following:
80
and redirect all requests to use https
.443
and use the origin certificate and private key that you added in the previous section.Modify the file so it looks like the following:
server {
listen 80;
listen [::]:80;
server_name your_domain www.your_domain;
return 302 https://$server_name$request_uri;
}
server {
# SSL configuration
listen 443 ssl http2;
listen [::]:443 ssl http2;
ssl on;
ssl_certificate /etc/ssl/cert.pem;
ssl_certificate_key /etc/ssl/key.pem;
server_name your_domain www.your_domain;
root /var/www/your_domain/html;
index index.html index.htm index.nginx-debian.html;
location / {
try_files $uri $uri/ =404;
}
}
Save the file and exit the editor.
Next, test to make sure that there are no syntax errors in any of your Nginx configuration files:
- sudo nginx -t
If no problems were found, restart Nginx to enable your changes:
- sudo systemctl restart nginx

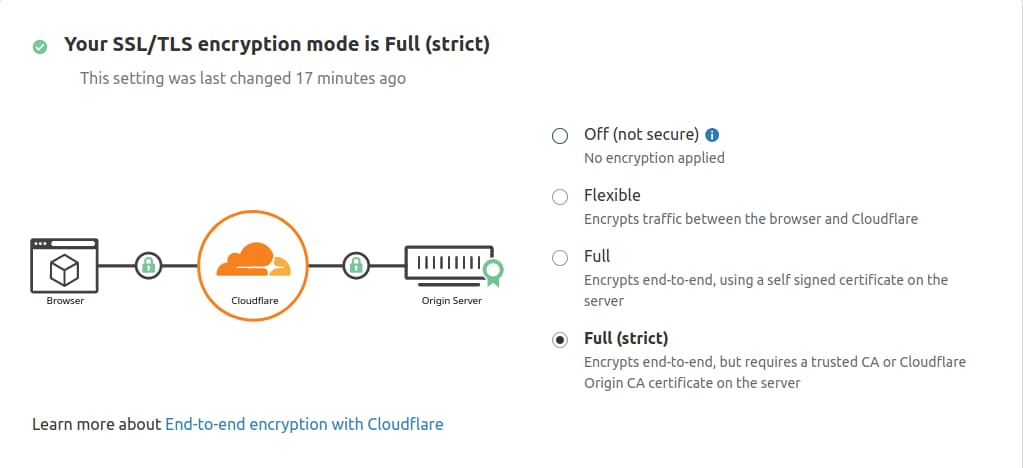

Now go to the Cloudflare dashboard’s SSL/TLS section, navigate to the Overview tab, and change SSL/TLS encryption mode to Full (strict). This informs Cloudflare to always encrypt the connection between Cloudflare and your origin Nginx server.
Now visit your website at https://your_domain
to verify that it’s set up properly. You’ll see your home page displayed, and the browser will report that the site is secure.
In the next section, you will set up Authenticated Origin Pulls to verify that your origin server is indeed talking to Cloudflare and not some other server. By doing so, Nginx will be configured to only accept requests that use a valid client certificate from Cloudflare; all requests that have not passed through Cloudflare will be dropped.
The Origin CA certificate will help Cloudflare verify that it is talking to the correct origin server. This step will use TLS Client Authentication to verify that your origin Nginx server is talking to Cloudflare.
In a client-authenticated TLS handshake, both sides provide a certificate to be verified. The origin server is configured to only accept requests that use a valid client certificate from Cloudflare. Requests which have not passed through Cloudflare will be dropped as they will not have Cloudflare’s certificate. This means that attackers cannot circumvent Cloudflare’s security measures and directly connect to your Nginx server.
Cloudflare presents certificates signed by a CA with the following certificate:
-----BEGIN CERTIFICATE-----
MIIGCjCCA/KgAwIBAgIIV5G6lVbCLmEwDQYJKoZIhvcNAQENBQAwgZAxCzAJBgNV
BAYTAlVTMRkwFwYDVQQKExBDbG91ZEZsYXJlLCBJbmMuMRQwEgYDVQQLEwtPcmln
aW4gUHVsbDEWMBQGA1UEBxMNU2FuIEZyYW5jaXNjbzETMBEGA1UECBMKQ2FsaWZv
cm5pYTEjMCEGA1UEAxMab3JpZ2luLXB1bGwuY2xvdWRmbGFyZS5uZXQwHhcNMTkx
MDEwMTg0NTAwWhcNMjkxMTAxMTcwMDAwWjCBkDELMAkGA1UEBhMCVVMxGTAXBgNV
BAoTEENsb3VkRmxhcmUsIEluYy4xFDASBgNVBAsTC09yaWdpbiBQdWxsMRYwFAYD
VQQHEw1TYW4gRnJhbmNpc2NvMRMwEQYDVQQIEwpDYWxpZm9ybmlhMSMwIQYDVQQD
ExpvcmlnaW4tcHVsbC5jbG91ZGZsYXJlLm5ldDCCAiIwDQYJKoZIhvcNAQEBBQAD
ggIPADCCAgoCggIBAN2y2zojYfl0bKfhp0AJBFeV+jQqbCw3sHmvEPwLmqDLqynI
42tZXR5y914ZB9ZrwbL/K5O46exd/LujJnV2b3dzcx5rtiQzso0xzljqbnbQT20e
ihx/WrF4OkZKydZzsdaJsWAPuplDH5P7J82q3re88jQdgE5hqjqFZ3clCG7lxoBw
hLaazm3NJJlUfzdk97ouRvnFGAuXd5cQVx8jYOOeU60sWqmMe4QHdOvpqB91bJoY
QSKVFjUgHeTpN8tNpKJfb9LIn3pun3bC9NKNHtRKMNX3Kl/sAPq7q/AlndvA2Kw3
Dkum2mHQUGdzVHqcOgea9BGjLK2h7SuX93zTWL02u799dr6Xkrad/WShHchfjjRn
aL35niJUDr02YJtPgxWObsrfOU63B8juLUphW/4BOjjJyAG5l9j1//aUGEi/sEe5
lqVv0P78QrxoxR+MMXiJwQab5FB8TG/ac6mRHgF9CmkX90uaRh+OC07XjTdfSKGR
PpM9hB2ZhLol/nf8qmoLdoD5HvODZuKu2+muKeVHXgw2/A6wM7OwrinxZiyBk5Hh
CvaADH7PZpU6z/zv5NU5HSvXiKtCzFuDu4/Zfi34RfHXeCUfHAb4KfNRXJwMsxUa
+4ZpSAX2G6RnGU5meuXpU5/V+DQJp/e69XyyY6RXDoMywaEFlIlXBqjRRA2pAgMB
AAGjZjBkMA4GA1UdDwEB/wQEAwIBBjASBgNVHRMBAf8ECDAGAQH/AgECMB0GA1Ud
DgQWBBRDWUsraYuA4REzalfNVzjann3F6zAfBgNVHSMEGDAWgBRDWUsraYuA4REz
alfNVzjann3F6zANBgkqhkiG9w0BAQ0FAAOCAgEAkQ+T9nqcSlAuW/90DeYmQOW1
QhqOor5psBEGvxbNGV2hdLJY8h6QUq48BCevcMChg/L1CkznBNI40i3/6heDn3IS
zVEwXKf34pPFCACWVMZxbQjkNRTiH8iRur9EsaNQ5oXCPJkhwg2+IFyoPAAYURoX
VcI9SCDUa45clmYHJ/XYwV1icGVI8/9b2JUqklnOTa5tugwIUi5sTfipNcJXHhgz
6BKYDl0/UP0lLKbsUETXeTGDiDpxZYIgbcFrRDDkHC6BSvdWVEiH5b9mH2BON60z
0O0j8EEKTwi9jnafVtZQXP/D8yoVowdFDjXcKkOPF/1gIh9qrFR6GdoPVgB3SkLc
5ulBqZaCHm563jsvWb/kXJnlFxW+1bsO9BDD6DweBcGdNurgmH625wBXksSdD7y/
fakk8DagjbjKShYlPEFOAqEcliwjF45eabL0t27MJV61O/jHzHL3dknXeE4BDa2j
bA+JbyJeUMtU7KMsxvx82RmhqBEJJDBCJ3scVptvhDMRrtqDBW5JShxoAOcpFQGm
iYWicn46nPDjgTU0bX1ZPpTpryXbvciVL5RkVBuyX2ntcOLDPlZWgxZCBp96x07F
AnOzKgZk4RzZPNAxCXERVxajn/FLcOhglVAKo5H0ac+AitlQ0ip55D2/mf8o72tM
fVQ6VpyjEXdiIXWUq/o=
-----END CERTIFICATE-----
You can also download the certificate directly from Cloudflare here.
Copy this certificate.
Then create the file /etc/ssl/cloudflare.crt
file to hold Cloudflare’s certificate:
- sudo nano /etc/ssl/cloudflare.crt
Add the certificate to the file. Then save the file and exit the editor.
Now update your Nginx configuration to use TLS Authenticated Origin Pulls. Open the configuration file for your domain:
- sudo nano /etc/nginx/sites-available/your_domain
Add the ssl_client_certificate
and ssl_verify_client
directives as shown in the following example:
. . .
server {
# SSL configuration
listen 443 ssl http2;
listen [::]:443 ssl http2;
ssl on;
ssl_certificate /etc/ssl/cert.pem;
ssl_certificate_key /etc/ssl/key.pem;
ssl_client_certificate /etc/ssl/cloudflare.crt;
ssl_verify_client on;
. . .
Save the file and exit the editor.
Next, test to make sure that there are no syntax errors in your Nginx configuration:
- sudo nginx -t
If no problems were found, restart Nginx to enable your changes:
- sudo systemctl restart nginx
Finally, to enable Authenticated Pulls, open the SSL/TLS section in the Cloudflare dashboard, navigate to the Origin Server tab and toggle the Authenticated Origin Pulls option .
Now visit your website at https://your_domain
to verify that it was set up properly. As before, you’ll see your home page displayed.
To verify that your server will only accept requests signed by Cloudflare’s CA, toggle the Authenticated Origin Pulls option to disable it and then reload your website. You should get the following error message :
Your origin server raises an error if a request is not signed by Cloudflare’s CA.
Note: Most browsers will cache requests, so to see the above change you can use Incognito/Private browsing mode in your browser. To prevent Cloudflare from caching requests while you set up your website, navigate to Overview in the Cloudflare dashboard and toggle Development Mode.
Now that you know it works properly, return to the SSL/TLS section in the Cloudflare dashboard, navigate to the Origin Server tab and toggle the Authenticated Origin Pulls option again to enable it.
In this tutorial you secured your Nginx-powered website by encrypting traffic between Cloudflare and the Nginx server using an Origin CA certificate from Cloudflare. You then set up Authenticated Origin Pulls on the Nginx server to ensure that it only accepts requests from Cloudflare’s servers, preventing anyone else from directly connecting to the Nginx server.
