How To Install and Secure Grafana on Ubuntu 22.04

Introduction

Grafana is an open-source data visualization and monitoring tool that integrates with complex data from sources like Prometheus, InfluxDB, Graphite, and ElasticSearch. Grafana lets you create alerts, notifications, and ad-hoc filters for your data while also making collaboration with your teammates easier through built-in sharing features.

In this tutorial, you will install Grafana and secure it with an SSL certificate and an Nginx reverse proxy. Once you have set up Grafana, you’ll have the option to configure user authentication through GitHub, allowing you to better organize your team permissions.

Prerequisites

To follow this tutorial, you will need:

• One Ubuntu 22.04 server set up by following the Initial Server Setup Guide for Ubuntu 22.04, including a non-root user with sudo privileges and a firewall configured with ufw.
• A fully registered domain name. This tutorial uses your_domain throughout. You can purchase a domain name on Namecheap, get one for free on Freenom, or use the domain registrar of your choice.
• The following DNS records set up for your server. You can follow the How To Add Domains article for details on how to add them if you are using DigitalOcean.
  • An A record with your_domain pointing to your server’s public IP address.
  • An A record with www.your_domain pointing to your server’s public IP address.
• Nginx set up by following the How To Install Nginx on Ubuntu 22.04 tutorial, including a server block for your domain.
• An Nginx server block with Let’s Encrypt configured, which you can set up by following How To Secure Nginx with Let’s Encrypt on Ubuntu 22.04.
• Optionally, to set up GitHub authentication, you’ll need a GitHub account associated with an organization.

Step 1 — Installing Grafana

In this first step, you will install Grafana onto your Ubuntu 22.04 server. You can install Grafana either by downloading it directly from its official website or by going through an APT repository. Because an APT repository makes it easier to install and manage Grafana’s updates, you’ll use that method in this tutorial.

Download the Grafana GPG key with wget, then pipe the output to gpg. This will convert the GPG key from base64 to binary format. Then pipe the output to tee to store the key in the /usr/share/keyrings/grafana.gpg file.

wget -q -O - https://packages.grafana.com/gpg.key | gpg --dearmor | sudo tee /usr/share/keyrings/grafana.gpg > /dev/null

In this command, the option -q turns off the status update message for wget, and -O outputs the file that you downloaded to the terminal. These two options ensure that only the contents of the downloaded file are pipelined. The > /dev/null option will hide the output from your terminal for security reasons.

Next, add the Grafana repository to your APT sources:

echo "deb [signed-by=/usr/share/keyrings/grafana.gpg] https://packages.grafana.com/oss/deb stable main" | sudo tee -a /etc/apt/sources.list.d/grafana.list

Refresh your APT cache to update your package lists:

sudo apt update

You can now proceed with the installation:

sudo apt install grafana

Once Grafana is installed, use systemctl to start the Grafana server:

sudo systemctl start grafana-server

Next, verify that Grafana is running by checking the service’s status:

sudo systemctl status grafana-server

You will receive output similar to this:

Output
● grafana-server.service - Grafana instance
     Loaded: loaded (/lib/systemd/system/grafana-server.service; disabled; vendor preset: enabled)
   Active: active (running) since Tue 2022-09-27 14:42:15 UTC; 6s ago
     Docs: http://docs.grafana.org
 Main PID: 4132 (grafana-server)
    Tasks: 7 (limit: 515)
...

This output contains information about Grafana’s process, including its status, Main Process Identifier (PID), and more. active (running) shows that the process is running correctly.

Lastly, enable the service to automatically start Grafana on boot:

sudo systemctl enable grafana-server

You will receive the following output:

Output
Synchronizing state of grafana-server.service with SysV service script with /lib/systemd/systemd-sysv-install.
Executing: /lib/systemd/systemd-sysv-install enable grafana-server
Created symlink /etc/systemd/system/multi-user.target.wants/grafana-server.service → /usr/lib/systemd/system/grafana-server.service.

This confirms that systemd has created the necessary symbolic links to autostart Grafana.

Grafana is now installed and ready for use. Next, you wil secure your connection to Grafana with a reverse proxy and SSL certificate.

Step 2 — Setting Up the Reverse Proxy

Using an SSL certificate will ensure that your data is secure by encrypting the connection to and from Grafana. But, to make use of this connection, you’ll first need to reconfigure Nginx as a reverse proxy for Grafana.

Open the Nginx configuration file you created when you set up the Nginx server block with Let’s Encrypt in the Prerequisites. You can use any text editor, but for this tutorial we’ll use nano:

sudo nano /etc/nginx/sites-available/your_domain

Locate the following block:

...
	location / {
        try_files $uri $uri/ =404;
	}
...

Because you already configured Nginx to communicate over SSL and because all web traffic to your server already passes through Nginx, you just need to tell Nginx to forward all requests to Grafana, which runs on port 3000 by default.

Delete the existing try_files line in this location block and replace it with the following options:

...
	location / {
	   proxy_set_header Host $http_host;
	   proxy_pass http://localhost:3000;
	}
...

This will map the proxy to the appropriate port and will pass a server name in the header.

Also, in order for the Grafana Live WebSocket connections to work correctly, add the following section outside the server section:

map $http_upgrade $connection_upgrade {
  default upgrade;
  '' close;
}

server {
    ...

Then add the following location section to the server block:

server {
...
	location /api/live {
        proxy_http_version 1.1;
        proxy_set_header Upgrade $http_upgrade;
        proxy_set_header Connection $connection_upgrade;
        proxy_set_header Host $http_host;
        proxy_pass http://localhost:3000;
	}
...

The headers Upgrade and Connection are not sent from the client to the proxied server. Therefore, in order for the proxied server to know about the client’s intention to change the protocol to WebSocket, these headers should be passed explicitly.

The final configuration will look like this:

map $http_upgrade $connection_upgrade {
	default upgrade;
	'' close;
}

server {
	...

	root /var/www/your_domain/html;
	index index.html index.htm index.nginx-debian.html;

	server_name your_domain www.your_domain;

	location / {
		proxy_set_header Host $http_host;
		proxy_pass http://localhost:3000;
	}

	location /api/live {
		proxy_http_version 1.1;
		proxy_set_header Upgrade $http_upgrade;
		proxy_set_header Connection $connection_upgrade;
		proxy_set_header Host $http_host;
		proxy_pass http://localhost:3000;
	}

   ...
}

Once you’re done, save and close the file by pressing CTRL+X, Y, and then ENTER if you’re using nano.

Now, test the new settings to make sure everything is configured correctly:

sudo nginx -t

You will receive the following output:

Output
nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

Finally, activate the changes by reloading Nginx:

sudo systemctl reload nginx

You can now access the default Grafana login screen by pointing your web browser to https://your_domain. If you’re unable to reach Grafana, verify that your firewall is set to allow traffic on port 443 and then re-trace the previous instructions.

With the connection to Grafana encrypted, you can now implement additional security measures, starting with changing Grafana’s default administrative credentials.

Step 3 — Updating Credentials

Because every Grafana installation uses the same administrative credentials by default, it is a best practice to change your login information as soon as possible. In this step, you’ll update the credentials to improve security.

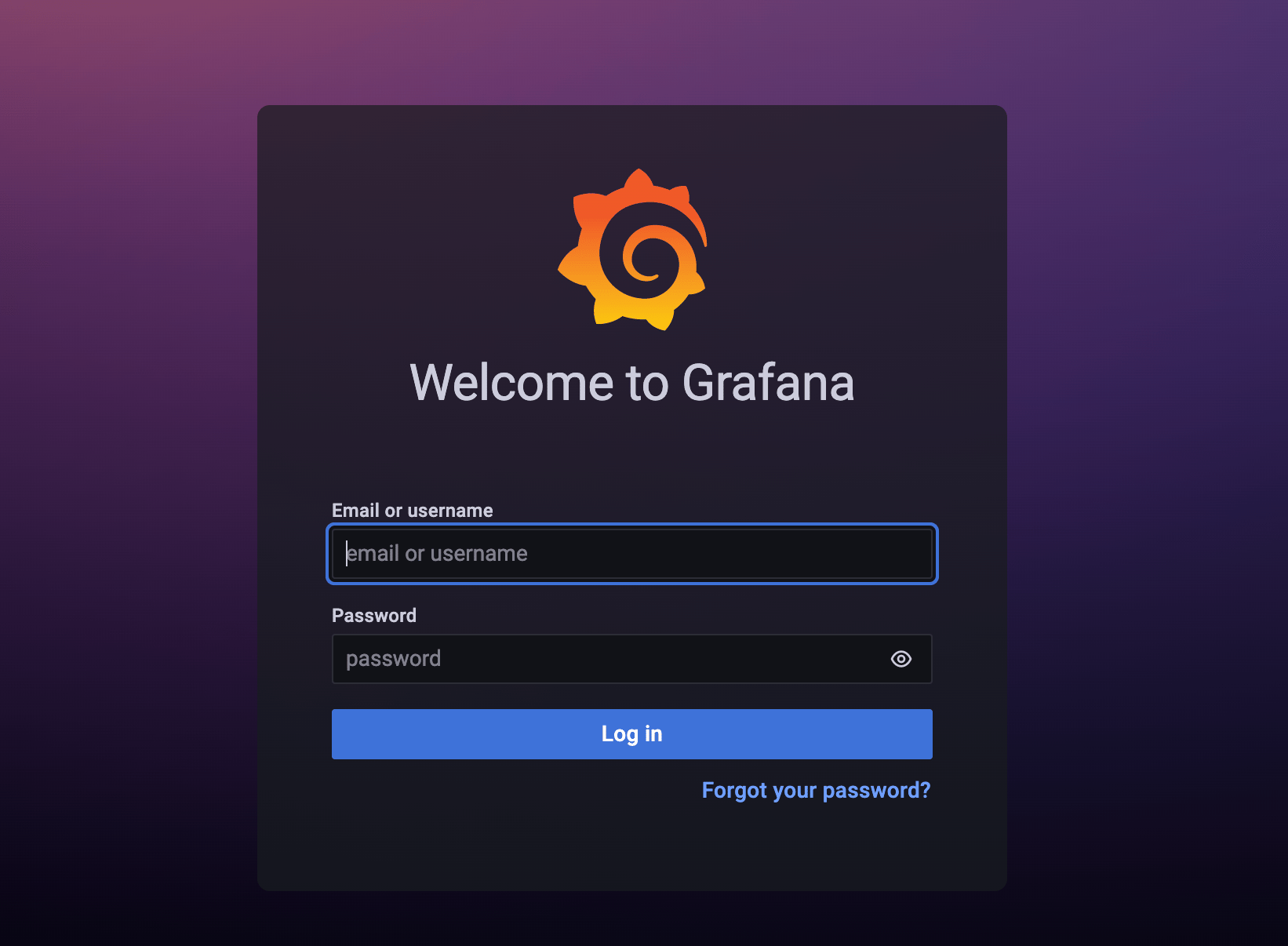

Start by navigating to https://your_domain from your web browser. This will bring up the default login screen where you’ll see the Grafana logo, a form asking you to enter an Email or username and Password, a Log in button, and a Forgot your password? link.

Enter admin into both the Email or username and Password fields and then click on the Log in button.

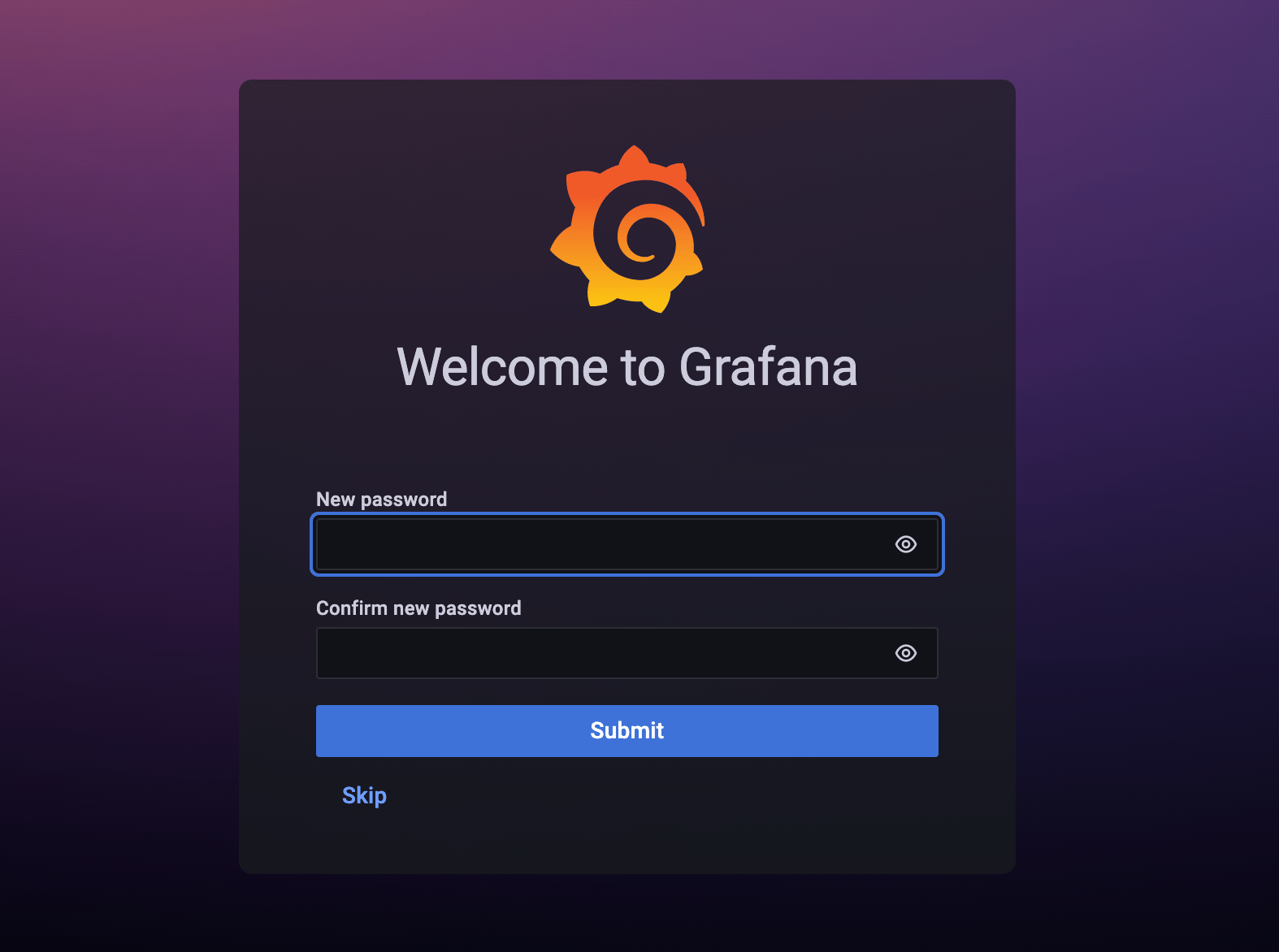

On the next screen, you’ll be asked to make your account more secure by changing the default password:

Enter the password you’d like to start using into the New password and Confirm new password fields.

From here, you can click Submit to save the new information or press Skip to skip this step. If you skip, you will be prompted to change the password next time you log in.

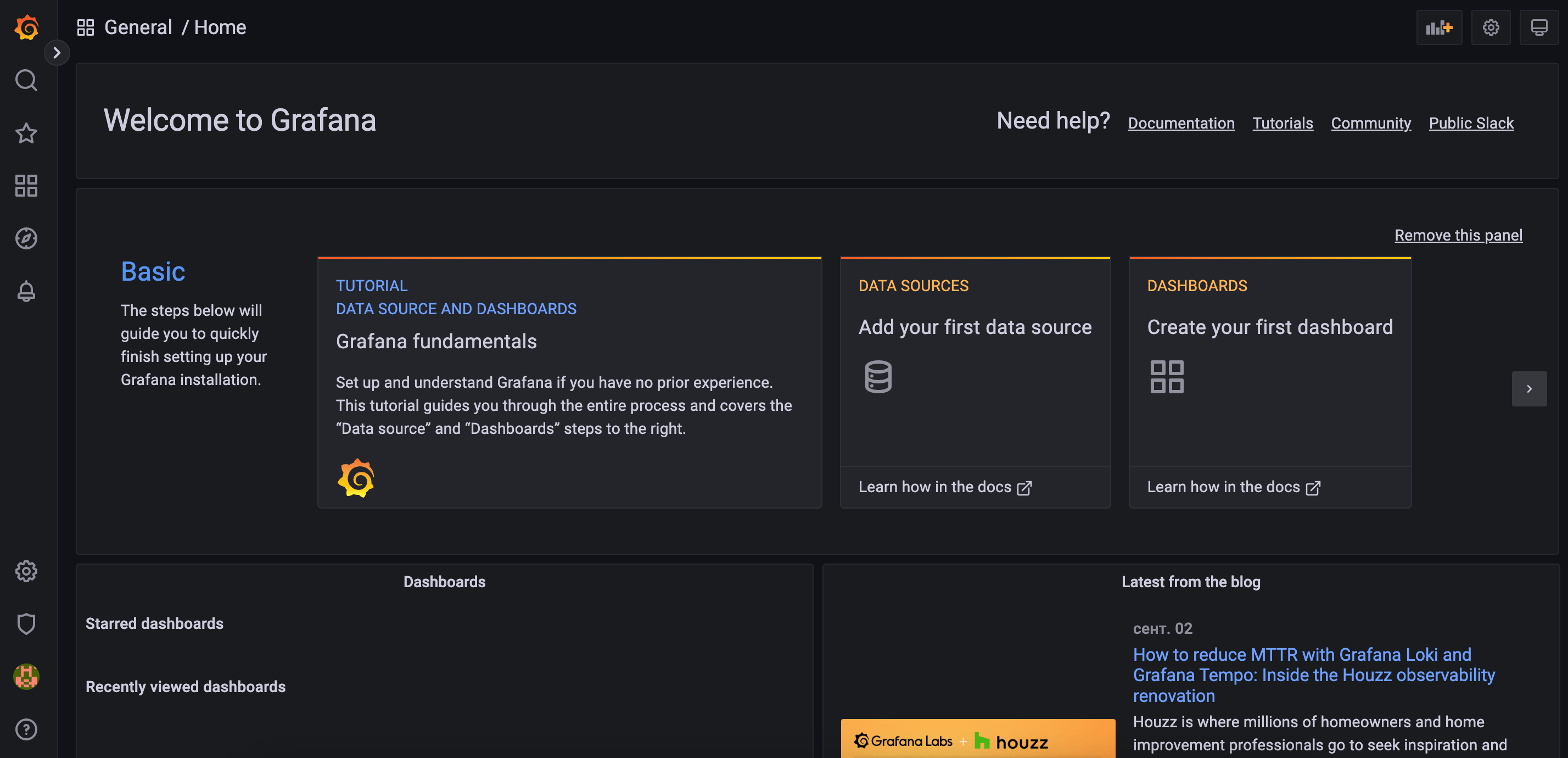

In order to increase the security of your Grafana setup, click Submit. You’ll go to the Welcome to Grafana dashboard:

You’ve now secured your account by changing the default credentials. Next, you will make changes to your Grafana configuration so that nobody can create a new Grafana account without your permission.

Step 4 — Disabling Grafana Registrations and Anonymous Access

Grafana provides options that allow visitors to create user accounts for themselves and preview dashboards without registering. When Grafana isn’t accessible via the internet or when it’s working with publicly available data like service statuses, you may want to allow these features. However, when using Grafana online to work with sensitive data, anonymous access could be a security problem. To fix this problem, you’ll make some changes to your Grafana configuration.

Start by opening Grafana’s main configuration file for editing:

sudo nano /etc/grafana/grafana.ini

Locate the following allow_sign_up directive under the [users] heading:

...
[users]
# disable user signup / registration
;allow_sign_up = true
...

Enabling this directive with true adds a Sign Up button to the login screen, allowing users to register themselves and access Grafana.

Disabling this directive with false removes the Sign Up button and strengthens Grafana’s security and privacy.

Uncomment this directive by removing the ; at the beginning of the line and then setting the option to false:

...
[users]
# disable user signup / registration
allow_sign_up = false
...

Next, locate the following enabled directive under the [auth.anonymous] heading:

...
[auth.anonymous]
# enable anonymous access
;enabled = false
...

Setting enabled to true gives non-registered users access to your dashboards; setting this option to false limits dashboard access to registered users only.

Uncomment this directive by removing the ; at the beginning of the line and then setting the option to false.

...
[auth.anonymous]
# enable anonymous access
enabled = false
...

Save the file and exit your text editor.

To activate the changes, restart Grafana:

sudo systemctl restart grafana-server

Verify that everything is working by checking Grafana’s service status:

sudo systemctl status grafana-server

Like before, the output will report that Grafana is active (running).

Now, point your web browser to https://your_domain. To return to the Sign Up screen, bring your cursor to your avatar in the lower left of the screen and click on the Sign out option that appears.

Once you have signed out, verify that there is no Sign Up button and that you can’t sign in without entering login credentials.

At this point, Grafana is fully configured and ready for use. Next, you can simplify the login process for your organization by authenticating through GitHub.

(Optional) Step 5 — Setting Up a GitHub OAuth App

For an alternative approach to signing in, you can configure Grafana to authenticate through GitHub, which provides login access to all members of authorized GitHub organizations. This can be particularly useful when you want to allow multiple developers to collaborate and access metrics without having to create Grafana-specific credentials.

Start by logging in to a GitHub account associated with your organization and then navigate to your GitHub profile page.

Switch settings context by clicking on the Switch to another account link on the top of the screen then selecting your organization in the dropdown menu. This will switch context from Personal settings to Organization settings.

On the next screen, you’ll see your Organization profile where you can change settings like your Organization display name, organization Email, and organization URL.

Because Grafana uses OAuth—an open standard for granting remote third parties access to local resources—to authenticate users through GitHub, you’ll need to create a new OAuth application within GitHub.

Click the OAuth Apps link under Developer settings on the lower left-hand side of the screen.

If you don’t already have any OAuth applications associated with your organization on GitHub, you’ll be told there are No Organization Owned Applications. Otherwise, you’ll see a list of the OAuth applications already connected to your account.

Click the Register an application button to continue.

On the next screen, fill in the following details about your Grafana installation:

• Application name: This helps you distinguish your different OAuth applications from one another.
• Homepage URL: This tells GitHub where to find Grafana. Type https://your_domain into this field, replacing your_domain with your domain.
• Application Description: This provides a description of your OAuth application’s purpose.
• Application callback URL: This is the address where users will be sent once successfully authenticated. For Grafana, this field must be set to https://your_domain/login/github.

Keep in mind that Grafana users logging in through GitHub will see the values you entered in the first three preceding fields, so be sure to enter something meaningful and appropriate.

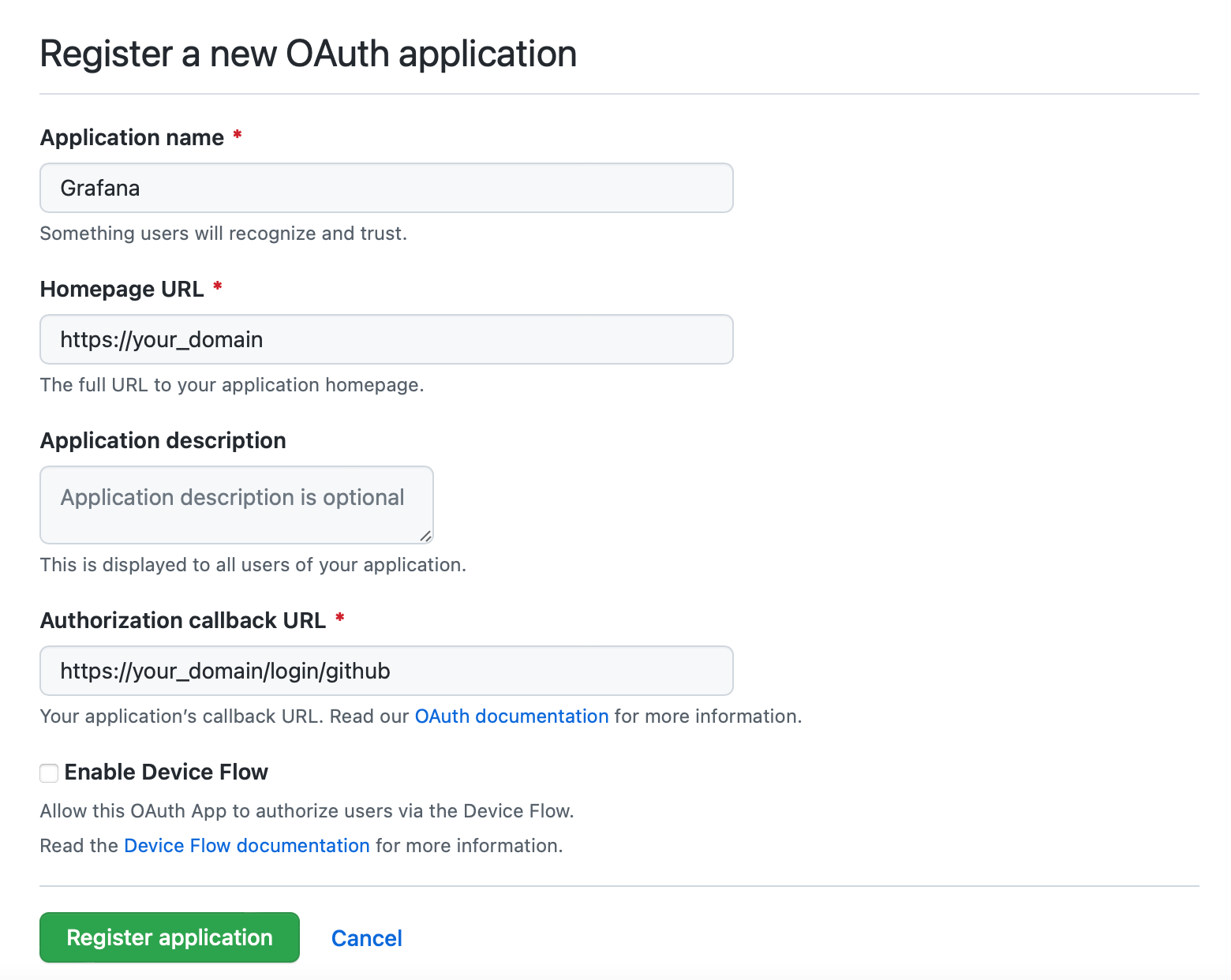

When completed, the form will look something like this:

Click the Register application button.

You will now be redirected to a page containing ganeral information about your new OAuth appliaction, including the Client ID. Then click the Generate a new client secret button to obtain new Client Secret. Make note of both values, because you will need to add them to Grafana’s main configuration file to complete the setup.

With your GitHub OAuth application created, you’re now ready to reconfigure Grafana to use GitHub for authentication.

(Optional) Step 6 — Configuring Grafana as a GitHub OAuth App

To complete GitHub authentication for your Grafana setup, you will now make some changes to your Grafana configuration files.

To begin, open the main Grafana configuration file:

sudo nano /etc/grafana/grafana.ini

Locate the [auth.github] heading, and uncomment this section by removing the ; at the beginning of every line except the following, which will not be changed in this tutorial:

• ;allowed_domains =
• ;team_ids =
• ;role_attribute_path =
• ;role_attribute_strict = false
• ;allow_assign_grafana_admin = false

Next, make the following changes:

• Set enabled and allow_sign_up to true. This will enable GitHub Authentication and permit members of the allowed organization to create accounts themselves. Note that this setting is different from the allow_sign_up property under [users] that you changed in Step 4.
• Set client_id and client_secret to the values you got while creating your GitHub OAuth application.
• Set allowed_organizations to the name of your organization to ensure that only members of your organization can sign up and log in to Grafana.

The complete configuration will look like this:

...
[auth.github]
enabled = true
allow_sign_up = true
client_id = your_client_id_from_github
client_secret = your_client_secret_from_github
scopes = user:email,read:org
auth_url = https://github.com/login/oauth/authorize
token_url = https://github.com/login/oauth/access_token
api_url = https://api.github.com/user
;allowed_domains =
;team_ids =
allowed_organizations = your_organization_name
;role_attribute_path =
;role_attribute_strict = false
;allow_assign_grafana_admin = false
...

You’ve now told Grafana everything it needs to know about GitHub. To complete the setup, you’ll need to enable redirects behind a reverse proxy. This is done by setting a root_url value under the [server] heading.

...
[server]
root_url = https://your_domain
...

Save your configuration and close the file.

Then, restart Grafana to activate the changes:

sudo systemctl restart grafana-server

Lastly, verify that the service is up and running:

sudo systemctl status grafana-server

The output will indicate that the service is active (running).

Now, test your new authentication system by navigating to https://your_domain. If you are already logged in to Grafana, hover your mouse over the avatar log in the lower left-hand corner of the screen, and click on Sign out in the secondary menu that appears next to your name.

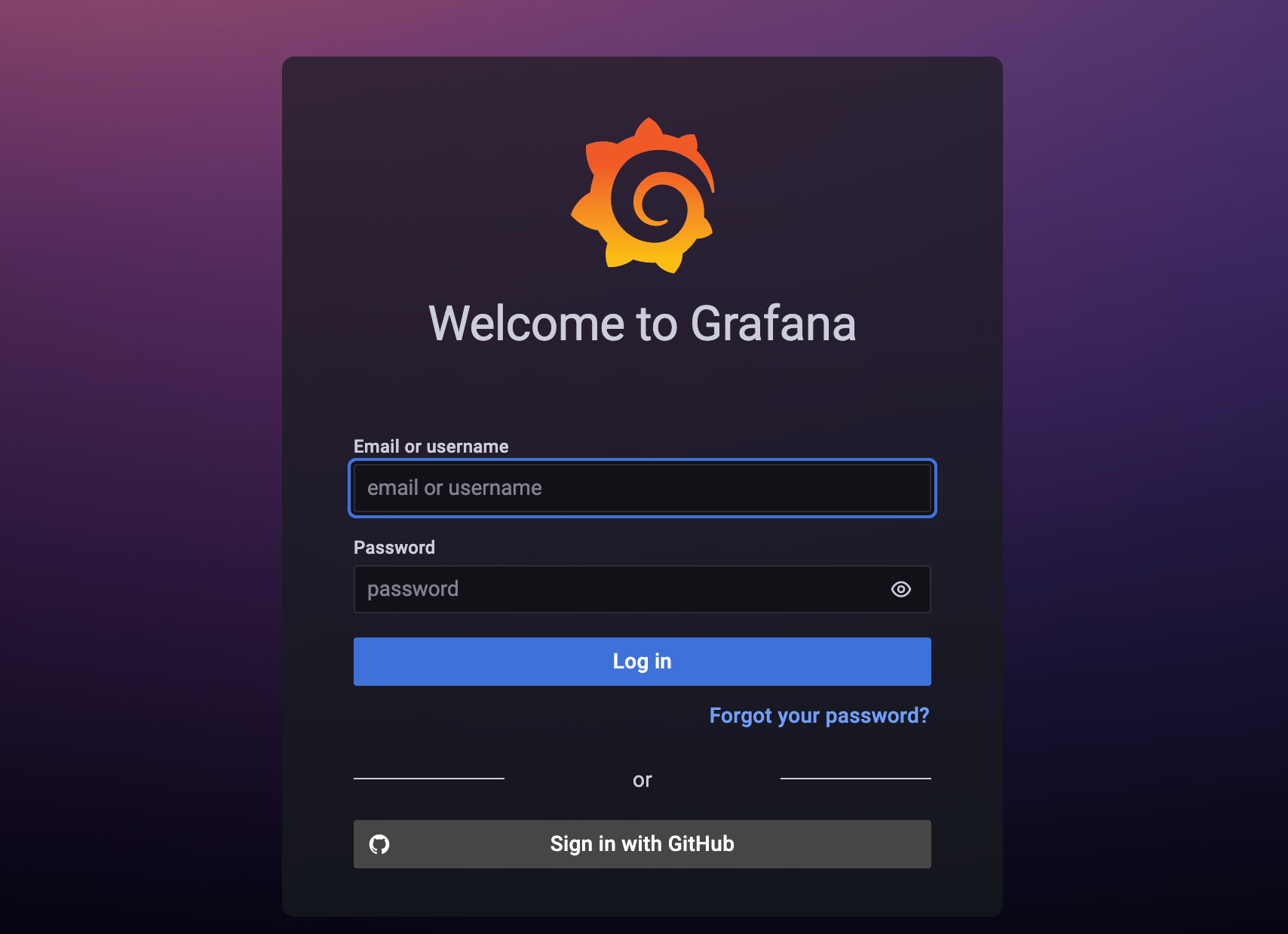

On the login page, you’ll see a new section under the original Log in button that includes a Sign in with GitHub button with the GitHub logo.

Click on the Sign in with GitHub button to be redirected to GitHub, where you’ll sign in to your GitHub account and confirm your intention to Authorize Grafana.

Click the green Authorize your_github_organization button.

You will now be logged in with your existing Grafana account. If a Grafana account doesn’t already exist for the user you logged in as, Grafana will create a new user account with Viewer permissions, ensuring that new users can only use existing dashboards.

To change the default permissions for new users, open the main Grafana configuration file for editing.

sudo nano /etc/grafana/grafana.ini

Locate the auto_assign_org_role directive under the [users] heading, and uncomment the setting by removing the ; at the beginning of the line.

Set the directive to one of the following values:

• Viewer: can only use existing dashboards.
• Editor: can use, modify, and add dashboards.
• Admin: has permission to do everything.

This tutorial will set the auto-assign to Viewer:

...
[users]
...
auto_assign_org_role = Viewer
...

Once you’ve saved your changes, close the file and restart Grafana:

sudo systemctl restart grafana-server

Check the service’s status:

sudo systemctl status grafana-server

Like before, the status will read active (running).

At this point, you have fully configured Grafana to allow members of your GitHub organization to register and use your Grafana installation.

Conclusion

In this tutorial, you installed, configured, and secured Grafana, and you also learned how to permit members of your organization to authenticate through GitHub.

To extend your current Grafana installation, see the list of official and community-built dashboards and plugins. To learn more about using Grafana in general, see the official Grafana documentation, or check out our other monitoring tutorials.
