How To Monitor Zabbix Alerts with Alerta on Ubuntu 16.04

Introduction

Alerta is a web application used to consolidate and de-duplicate alerts from multiple monitoring systems and visualize them on a single screen. Alerta can integrate with many well-known monitoring tools like Nagios, Zabbix, Sensu, InfluxData Kapacitor, and many others.

In this tutorial you’ll set up Alerta and configure it to display notifications from the Zabbix monitoring system.

Prerequisites

To follow this tutorial, you will need:

• Two Ubuntu 16.04 servers set up by following the Ubuntu 16.04 initial server setup guide, including a sudo non-root user and a firewall.
• On the first Ubuntu server, which is where you’ll run Zabbix, install the following components:
  • Apache, MySQL, and PHP, by following the tutorial How To Install Linux, Apache, MySQL, PHP (LAMP) stack on Ubuntu 16.04.
  • Zabbix Server, installed by following the tutorial How To Install and Configure Zabbix to Securely Monitor Remote Servers on Ubuntu 16.04 and its prerequisites.
• On the second Ubuntu server, which is where we’ll install Alerta in this tutorial, install the following components:
  • Nginx, installed by following the tutorial How To Install Nginx on Ubuntu 16.04.
  • MongoDB, installed by following the tutorial How to Install MongoDB on Ubuntu 16.04.
• If you wish to secure the Alerta web interface as explained in Step 6, you’ll need a GitHub account that’s part of a GitHub organization. Follow this tutorial to create a GitHub organization.

Step 1 — Installing Alerta’s API Server

Alerta consists of a server and a web interface. The Alerta server is responsible for storing and processing alerts, and serving JSON through an API. The Alerta web interface lets you view the list of alerts in a browser, so you don’t have to interpret the JSON yourself. We’ll install both components on the server where we’ve installed MongoDB and Nginx. We’ll refer to this machine as the “Alerta server” throughout this tutorial. Log into this machine as your non-root user:

ssh sammy@your_alerta_server_ip

Before we can install any Alerta components, we need to install pip, the Python package manager, and the Python development files. We’ll also need Git installed so we can retrieve Alerta’s source code from GitHub.

Run the following command to install these software packages:

sudo apt-get install python-pip python-dev gcc git

Once these packages install, we are ready to install Alerta.

First we’ll install Alerta’s server using pip:

sudo pip install alerta-server

Check the installation by running the Alerta server in development mode:

sudo alertad

You should see something like:

Output
     * Running on http://0.0.0.0:8080/ (Press CTRL+C to quit)

sudo ufw allow 8080/tcp

Now you can open http://your_alerta_server_ip:8080 in your browser and see the Alerta API web page, which will show you some usage examples.

Once you’ve verified the server is running, stop the server by pressing Ctrl+C. We’ll configure it as a service shortly.

The Alerta API server is installed, so let’s install the web console.

Step 2 — Installing the Alerta Web UI

Alerta has a dashboard that displays messages in you browser. It displays alert messages in tables, so you can read and sort them easily. You can configure the view to meet your needs: you can filter messages or sort them by any field. In addition, you can view detailed information for each message. We’ll install this on the same server where we installed the Alerta API server.

First get the source code from Github:

git clone https://github.com/alerta/angular-alerta-webui.git

Then copy the application files into your web server directory:

sudo cp -r angular-alerta-webui/app/* /var/www/html/

By default, Alerta’s web interface is configured to communicate with the development server API, which is running on port 8080. We’ll set this up for production use by making the Alerta Server’s API available at the /api endpoint on our server, and serve the web console static content from the same domain, which lets us avoid problems with CORS, or HTTPS mixed-content errors.

Open the config.js configuration file:

sudo nano /var/www/html/config.js

And set the endpoint to /api:

    'use strict';

    angular.module('config', [])
      .constant('config', {
        'endpoint'    : "/api",
        'provider'    : "basic", // google, github, gitlab, keycloak or basic
    ...

Leave the other options at their default values. We will change some of them later in this tutorial when we configure OAuth authorization.

Now all the necessary Alerta components have been installed. We just need to set them up to work together.

Step 3 — Running Alerta with uWSGI Behind Nginx.

We can use the alertad development server for some quick tests, but it’s not good for production use, so let’s fix that. Since Alerta is written in Python, we need to use a WSGI server to run it. In this tutorial we will run Alerta as an uWSGI application proxied behind Nginx, at http://your_alerta_server_ip/api.

First, install the uWSGI application server using the Python package manager:

sudo pip install uwsgi

Next, create the wsgi.py file, which the application server uses to communicate with our application. Open the file in your editor:

sudo nano /var/www/wsgi.py

Add the following line to the file, which tells uWSGI how to invoke the Alerta application:

from alerta.app import app

Next, we need to configure the uWSGI server itself. Create the configuration file /etc/uwsgi.ini and open it in your editor:

sudo nano /etc/uwsgi.ini

This file specifies the location of the application, along with the socket options for interacting with Nginx.

Add the following lines to the file:

[uwsgi]
chdir = /var/www
mount = /api=wsgi.py
callable = app
manage-script-name = true

master = true
processes = 5
logger = syslog:alertad

socket = /tmp/uwsgi.sock
chmod-socket = 664
uid = www-data
gid = www-data
vacuum = true

die-on-term = true

You can see the complete reference list of the uWSGI options in the documentation.

Next, we’ll create a Systemd unit for this application so we can control it using the systemctl command.

sudo nano /etc/systemd/system/alerta-app.service

This unit file needs some configuration directives that describe the unit and define its behavior. Add the following lines to the file:

[Unit]
Description=uWSGI service for Alerta
After=syslog.target

[Service]
ExecStart=/usr/local/bin/uwsgi --ini /etc/uwsgi.ini
RuntimeDirectory=uwsgi
Restart=always
KillSignal=SIGQUIT
Type=notify
StandardError=syslog
NotifyAccess=all

[Install]
WantedBy=multi-user.target

You can find more information about these settings and how to work with Systemd units in this Systemd tutorial.

Now you can run the uWSGI service:

sudo systemctl start alerta-app

You can check the status by running:

systemctl status alerta-app

You’ll see the following output:

Output
    ● alerta-app.service - uWSGI service for Alerta
       Loaded: loaded (/etc/systemd/system/alerta-app.service; disabled; vendor preset: enabled)
       Active: active (running) since Fri 2017-06-09 07:02:14 UTC; 4s ago
     Main PID: 19807 (uwsgi)
       Status: "uWSGI is ready"
        Tasks: 8
       Memory: 29.7M
          CPU: 477ms
       CGroup: /system.slice/alerta-app.service
               ├─19807 /usr/local/bin/uwsgi --ini /etc/uwsgi.ini
               ├─19819 /usr/local/bin/uwsgi --ini /etc/uwsgi.ini
               ├─19820 /usr/local/bin/uwsgi --ini /etc/uwsgi.ini
               ├─19821 /usr/local/bin/uwsgi --ini /etc/uwsgi.ini
               ├─19822 /usr/local/bin/uwsgi --ini /etc/uwsgi.ini
               └─19823 /usr/local/bin/uwsgi --ini /etc/uwsgi.ini

As you can see, the service is disabled by default, which means it won’t start automatically. Enable it:

sudo systemctl enable alerta-app

Finally, we have to configure Nginx to redirect all requests for your_alerta_server_ip/api to the running uWSGI server and serve the web front-end with Nginx.

Rather than modify the default Nginx configuration file, we’ll place the Alerta configuration in its own file.

sudo nano /etc/nginx/sites-available/alerta

Add the following contents to the file. Be sure to replace the value for server_name with your Alerta server’s IP address.

server {
    listen  80;
    server_name  your_alerta_server_ip;

    location /api { try_files $uri @api; }
    location @api {
    include uwsgi_params;
        uwsgi_pass unix:/tmp/uwsgi.sock;
        proxy_set_header Host $host:$server_port;
        proxy_set_header X-Real-IP $remote_addr;
        proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    }

    location / {
        root /var/www/html;
    }

}

You can find more information about Nginx server blocks in this tutorial.

Now enable the site by creating a symbolic link from this file to the sites-enabled directory, which Nginx reads from during startup:

sudo ln -s /etc/nginx/sites-available/alerta /etc/nginx/sites-enabled/

Save the file and exit the editor.

Next, test the Nginx configuration to ensure there are not typos or misconfigurations:

sudo nginx -t

You’ll see the following output, provided there are no errors with your configuration:

Output
    nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
    nginx: configuration file /etc/nginx/nginx.conf test is successful

If you see something different, address the errors and try again.

Now you can reload Nginx to apply new settings:

sudo nginx -s reload

Open http://your_alerta_server_ip link in your browser and see the Alerta dashboard.

If you install Alerta on a publicly-accessible server, you should configure it to require authentication. Let’s look at a couple of methods to do that.

Step 4 — Securing Alerta with Basic Authentication

By default, anyone who knows the address of the Alerta server can view any messages. It’s acceptable for a testing environment, but not for production. To enforce authentication, open the alertad.conf configuration file:

sudo nano /etc/alertad.conf

Add the following code to the file:

AUTH_REQUIRED = True
SECRET_KEY = 'secret_key'

Set SECRET_KEY to a random string of your choice. Save the file, exit the editor, and restart the uWSGI service:

sudo systemctl restart alerta-app

Reload the Alerta Web UI web page. You’ll see the message ”Please login to continue”. Click the Create an account link and create a new account. Once you complete the process, you will get access to the Alerta dashboard.

Once you enable authentication, you’ll need an API key to access the Alerta API. Select the Configuration menu and choose API keys.

Enter the name of the application which requires access to the API. For this tutorial, enter zabix. Then select read-write from the dropdown, and click the Create new API Key button. The new key will be created and you will see its details. Copy this key; you will need it later.

Alternatively, you can set up OAuth authentication and use your GitHub or Google credentials to log in to the Alerta user interface. If the Basic authentication is enough, you can skip the next step.

Step 5 — Securing Alerta with OAuth (optional)

Alerta’s Web UI supports OAuth authentication for Google, GitHub, Gitlab, and Keycloak. We’ll configure logging in via a GitHub account, so you’ll need one to proceed.

First, register a new application with GitHub. Log into your GitHub account and navigate to the New Application page..

Fill in the form with the following details:

1. Fill in Application name with Alerta or a suitable descriptive name.
2. For the Homepage URL, use http://your_alerta_server_ip/.
3. Fill in the Authorization callback URL with http://your_alerta_server_ip/.
4. Click Register application to save the settings.
5. Copy the Client ID and Client Secret values provided on the next screen.

Next, edit the Alerta configuration to enable OAuth authentication. Open the configuration file:

sudo nano /etc/alertad.conf

Add the following settings at the end of the file:

OAUTH2_CLIENT_ID = 'your_github_client_id'
OAUTH2_CLIENT_SECRET = 'your_github_client_secret'
ALLOWED_GITHUB_ORGS = ['your_github_organization']

Use your GitHub Client ID, GitHub Client Secret, and GitHub Organization for these values, respectively.

Save the file, exit the editor, and restart the uWSGI service:

sudo systemctl restart alerta-app

Then change the authentication provider for the web interface. Edit its configuration file:

sudo nano /var/www/html/config.js

Find the following section and change the provider from basic to github, and enter your GitHub Client ID:

    ...
        'provider'    : "github",
        'client_id'   : "INSERT-CLIENT-ID-HERE",
    ...

Open http://your_alerta_server_ip to access the Alerta Web UI. This time you’ll see the message ”Please login to continue”. Click the Login button to log in and you’ll be asked to allow the application to access your GitHub account. Once you allow access, you’ll be logged in.

Now we can run a simple test to check if Alerta is set up and functioning correctly.

Step 6 — Sending a Test Message

We will use Alerta’s unified command-line tool to send a test alert. First, install the command-line client:

sudo pip install alerta

Then create a configuration file that defines the Alerta API endpoint you configured earlier, along with the API key you wish to use. Create a new file in your editor:

nano ~/.alerta.conf

Paste the following into the file:

[DEFAULT]
endpoint = http://your_alerta_server_ip/api
key = your_alerta_api_key

Use the API key you set up in Step 4 for the key option.

Now we can send a test alert:

alerta send --resource webserver01 --event down --environment Production --service Website01 --severity major --text "Web server 01 is down." --value ERROR

You’ll see output similar to this:

Output
f12558eb-e333-4a10-9c08-7d63f8b0442c (indeterminate -> major)

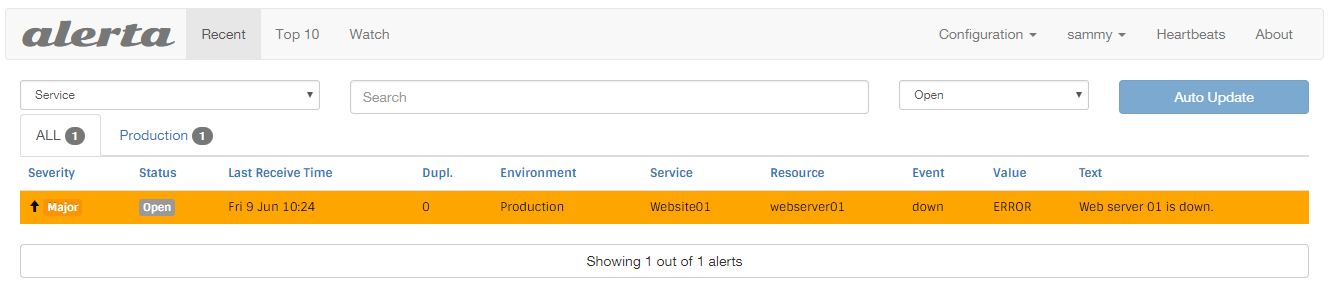

Visit http://your_alerta_server_ip in your browser and you’ll see a message on the dashboard that looks like the one in the following figure:

You can click on the message to see the details.

Your Alerta server is up and waiting for new messages. Let’s configure our Zabbix monitoring system to send alerts to Alerta.

Step 7 — Installing the Zabbix-Alerta Gateway

In this step, we’ll modify our Zabbix monitoring system to send notification messages to Alerta.

Log into your Zabbix server machine as your non-root user:

ssh sammy@your_zabbix_server_ip

Ubuntu 16.04 comes with Python 3 installed, and uses python3 as the binary. At the time of publication, the Alerta scripts for Zabbix require Python 2. We’ll also need Git installed so we can retrieve source code from GitHub. Run the following command to install these software packages:

sudo apt-get install python python-setuptools git

By default, Zabbix can send notifications by e-mail, SMS or Jabber messages, but you can add new notification handlers using scripts. The Alerta developers offer a ready-made notification script. To install it, clone the zabbix-alerta repository and install it using the installation script:

git clone https://github.com/alerta/zabbix-alerta.git
cd zabbix-alerta
sudo python setup.py install

Then create a symbolic link for the zabbix-alerta script in the directory where Zabbix stores alerts scripts. You can find its path in the /etc/zabbix/zabbix_server.conf configuration file:

sudo grep -e '^AlertScriptsPath' /etc/zabbix/zabbix_server.conf

You’ll see output that looks like the following:

Output
AlertScriptsPath=/usr/lib/zabbix/alertscripts

By default, Zabbix looks for scripts in /usr/lib/zabbix/alertscripts. Execute the following command to create the symlink:

sudo ln -s `which zabbix-alerta` /usr/lib/zabbix/alertscripts

Let’s configure the Alerta integration. Log in into your Zabbix web interface at http://your_zabbix_server_ip/zabbix/.

In the main menu, click Administration, select Media Types, and click the Create Media Type button in the top right corner.

Fill out the form with the following details:

• For Name, enter Alerta.
• For Type, select Script from the dropdown.
• For Script name, enter zabbix-alerta.
• For Script parameters, enter the following values:
  • {ALERT.SENDTO}
  • {ALERT.SUBJECT}
  • {ALERT.MESSAGE}
• Ensure the Enabled checkbox is checked.

Click the Add button to create the new media type.

Then add new media for your user account. Select Administration in the main menu, then choose Users. Click your user name and select the Media tab. Enter the following details

• For Type, select Alerta.
• For Send to, enter http://your_alerta_server_ip/api;your_api_key.

Use the API key you created in Step 4.

Save the new media type by clicking the Add button.

Then verify the configuration for the user and save the settings by clicking the Update button.

Now configure an action to send messages. Select Configuration in the main menu, then select Actions. Click the Create Action button.

On the Action tab, set the Name field’s value to Forward to Alerta.

On the Operations tab, set the following options:

• Set Default subject to {TRIGGER.STATUS}: {TRIGGER.NAME}
• For Default message, enter the following text:

Default message
resource={HOST.NAME1}
event={ITEM.KEY1}
environment=Production
severity={TRIGGER.SEVERITY}
status={TRIGGER.STATUS}
ack={EVENT.ACK.STATUS}
service={TRIGGER.HOSTGROUP.NAME}
group=Zabbix
value={ITEM.VALUE1}
text={TRIGGER.STATUS}: {TRIGGER.NAME}
tags={EVENT.TAGS}
attributes.ip={HOST.IP1}
attributes.thresholdInfo={TRIGGER.TEMPLATE.NAME}: {TRIGGER.EXPRESSION}
type=zabbixAlert
dateTime={EVENT.DATE}T{EVENT.TIME}Z

Zabbix will send messages in the specified format when it detects a problem. It will replace the expressions in curly brackets with the corresponding values. All these fields are necessary for Alerta to receive the alert and display it correctly.

Next, create a new operation by clicking New in the Operations field. Enter the following values into the form:

• For Send to Users, enter Your user name.
• For Send only to, select Alerta from the dropdown box.

Then select the Recovery operations tab and change the Default message to the following:

Recovery operations
resource={HOST.NAME1}
event={ITEM.KEY1}
environment=Production
severity={TRIGGER.SEVERITY}
status={TRIGGER.STATUS}
ack={EVENT.ACK.STATUS}
service={TRIGGER.HOSTGROUP.NAME}
group=Zabbix
value={ITEM.VALUE1}
text={TRIGGER.STATUS}: {ITEM.NAME1}
tags={EVENT.RECOVERY.TAGS}
attributes.ip={HOST.IP1}
attributes.thresholdInfo={TRIGGER.TEMPLATE.NAME}: {TRIGGER.EXPRESSION}
attributes.moreInfo=<a href="http://your_zabbix_server_ip/zabbix/tr_events.php?triggerid={TRIGGER.ID}&eventid={EVENT.RECOVERY.ID}">Zabbix console</a>
type=zabbixAlert
dateTime={EVENT.RECOVERY.DATE}T{EVENT.RECOVERY.TIME}Z

This message is similar to the previous message. This message will be sent when the problem disappears.

Next, create a new operation by clicking New in the Operations field. For Operation type, select Send recovery message from the dropdown box.

Complete the configuration by clicking the Add button.

Zabbix is ready to send alerts to Alerta. Let’s generate one.

Step 8 — Generating a Test Alert to Verify Zabbix-Alerta Integration

Let’s generate a test alert to ensure everything is connected. By default, Zabbix keeps track of the amount of free disk space on your server. We’ll create a temporary file that’s large enough to trigger Zabbix’s file system usage alert.

Log in to your Zabbix server if you’re not already connected.

Next, determine how much free space you have on the server. You can use the df command to find out:

df -h

You’ll see output like the following:

Output
    Filesystem      Size  Used Avail Use% Mounted on
    /dev/vda1        20G  1.5G   18G   9% /

We are interested in the amount of free space. In this case, the free space is 18GB. Your free space may differ.

Use the fallocate command to create a file that takes up more than 80% of the available disk space, which should be enough to trigger the alert:

fallocate -l 16G /tmp/temp.img

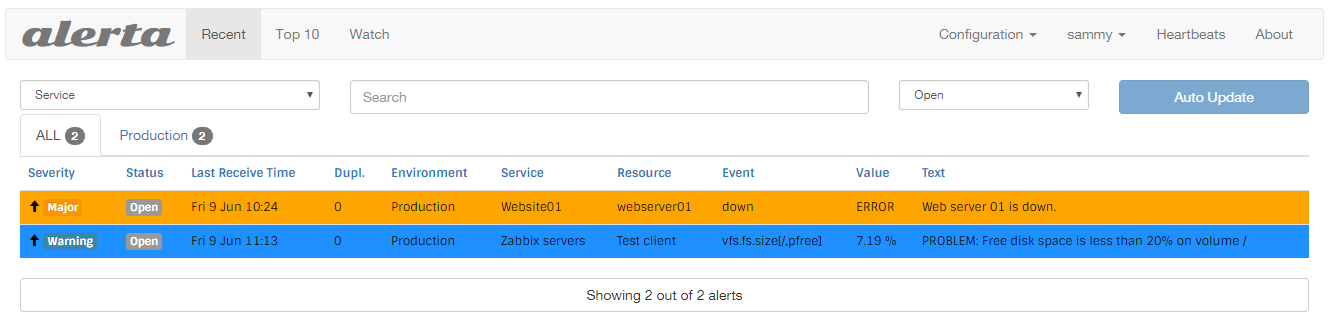

Within a few minutes, Zabbix will trigger an alert about the amount of free disk space and will run the action we configured, sending the notification message to Alerta. You will see this new notification in the Alerta dashboard.

Now that you know the alerts are working, delete the temporary file you created so you can reclaim your disk space:

rm -f /tmp/temp.img

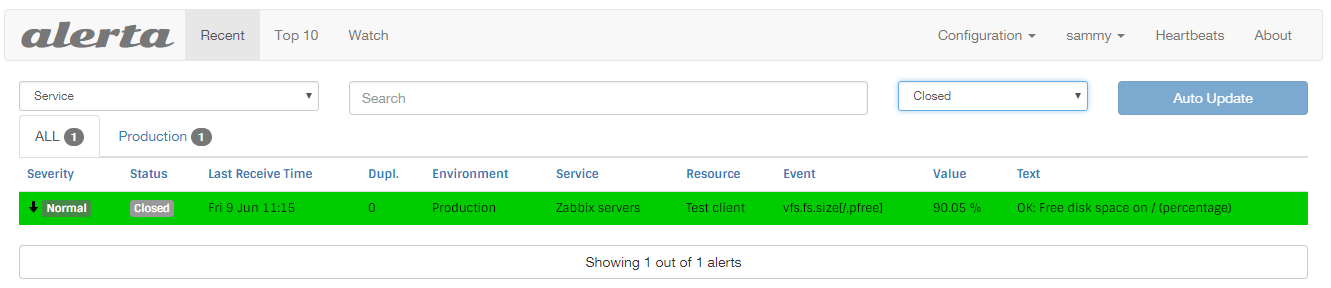

After a minute Zabbix will send the recovery message. The alert will disappear from main dashboard, but you can view all closed events by selecting Closed.

You can click on the event row to view more details.

Conclusion

In this tutorial, you installed and configured Alerta, and set up Zabbix to send notifications into it. As a result, you now have a convenient tool to track alerts. In the future, you can add other sources of notifications, thereby consolidating and centralizing information from various monitoring systems.
