How To Publish Books with Booktype on Debian 8

Published on December 10, 2015
How To Publish Books with Booktype on Debian 8

An Article from Sourcefabric

Introduction

Booktype is a specialized content management system for the production of books, including real, good-looking books you can hold in your hands.

You can produce Booktype output in PDF, EPUB, MOBI, XML, and HTML formats ready for book stores or the open web. Authors can import existing manuscripts in Word’s .docx format or as EPUBs, which are converted to Booktype’s native HTML chapter format for editing with Aloha.

Booktype is also a social environment in which authors can chat and share notes while producing books, seek assistance from others, or look for projects to contribute to. Booktype is a Django application written in Python and is Free Software licensed under the GNU Affero GPL, meaning that it can be freely downloaded, re-used and customized.

Booktype can be installed on any suitable GNU/Linux or Apple OS X server and in principle could run on Windows too, but this tutorial focuses on the recommended platform of Debian stable, version 8.2 (Jessie). While writing and editing books, authors can use any device with a modern web browser such as Mozilla Firefox or Google Chrome.

In this tutorial, we’ll go through an installation of Booktype which will enable you and your colleagues to produce PDF books for print and screen, EPUBs for digital devices, and XHTML for your website — all from a single source. If you want to get deeper into the possibilities of Booktype, this is a good place to start. This tutorial covers Booktype 2.0.

Prerequisites

To following this tutorial, you will need:

Step 1 — Setting Up The Dependencies

Before installing Booktype, you first need to install the development packages: the RabbitMQ server, the Redis server, the PostgreSQL database management system, the tidy syntax checker, and the Apache web server with its WSGI module:

  1. sudo apt-get install git-core python-dev python-pip libjpeg-dev libpq-dev libxml2-dev libxslt-dev rabbitmq-server redis-server postgresql tidy apache2-mpm-prefork libapache2-mod-wsgi

If you wish Booktype to be able to send email notifications to authors, you will also need an SMTP mail server available. The simplest outgoing mail server setup is shown in the tutorial How To Install and Configure Postfix as a Send-Only SMTP Server on Ubuntu 14.04. The only difference for Debian 8.2 (instead of Ubuntu 14.04) is that in Step 1 you should enter the command:

  1. sudo apt-get install postfix mailutils

rather than:

  1. sudo apt-get install mailutils

Otherwise Debian’s default mail server, Exim, will be installed in place of Postfix. Exim is more complicated to configure and is not necessary for sending notifications from Booktype.

Step 2 — Installing a PDF Renderer (Optional)

If you want to produce print books, you will need a renderer to convert Booktype’s HTML chapters into a single PDF file. The PHP application mPDF 6.0 is recommended, due to its extensive support for pre-press features. Before installing mPDF, you need to install the command line interpreter for PHP and the unzip utility with the command:

  1. sudo apt-get install php5-cli unzip

Next, download mPDF, extract it in the directory /var/www/:

  1. sudo wget http://mpdf1.com/repos/MPDF60.zip
  2. sudo unzip MPDF60.zip -d /var/www/

The file is quite large, so it may take some time to download it.

Finally, change the owner of mPDF’s temporary directories to the Apache web server user www-data:

  1. cd /var/www/mpdf60/
  2. sudo chown www-data.www-data graph_cache/ tmp/ ttfontdata/

Step 3 — Setting Up The Database

The next thing you need is a database to be available. Enter the following command to create the PostgreSQL user booktype-user:

  1. sudo -u postgres createuser -SDRP booktype-user

Enter the password you wish to set in the database when prompted. You will need to re-enter it for confirmation.

Note: Write down the password in a secure place. You will need it again in Step 5 — Creating a Booktype Instance.

Then create a database named booktype-db, setting booktype-user as the owner. The encoding should be the international UTF-8 character set, as indicated with the -E option.

  1. sudo -u postgres createdb -E utf8 -O booktype-user booktype-db

Note: The command line option to create a PostgreSQL user is the letter O (-O), not the number zero.

Note: If you use a different database name or owner, write it down. You will need it later in Step 5 — Creating a Booktype Instance when editing dev.py.

Confirm that connections to the database booktype-db are allowed by checking the PostgreSQL configuration file with the nano editor:

  1. sudo nano /etc/postgresql/9.4/main/pg_hba.conf

Near the end of the file is a section with client authentication rules. It should look like the following:

/etc/postgresql/9.4/main/pg_hba.conf
# TYPE  DATABASE     USER           ADDRESS     METHOD

# "local" is for Unix domain socket connections only
local   all          all                             peer
# IPv4 local connections:
host    all          all            127.0.0.1/32     md5
# IPv6 local connections:
host    all          all            ::1/128          md5

The section in the example above indicates that all local connections to PostgreSQL over both IPv4 and IPv6 are allowed on this server, so we’re good to go. Quit nano with Ctrl+X.

Step 4 — Installing Booktype With Git

While a .deb package is available from the Sourcefabric apt server, GitHub contains the most up-to-date version of Booktype available. Using Git also makes it easier to follow bug fixes between releases or contribute pull requests to the Booktype project. Download a copy of Booktype 2.0 from the git repository to the /usr/local/src/booktype/ directory:

  1. sudo mkdir /usr/local/src/booktype/
  2. sudo git clone https://github.com/sourcefabric/Booktype.git --branch 2.0 --depth 1 /usr/local/src/booktype/

Next, install the requirements for both development and production installs so you’ll be able to use either:

  1. sudo pip install -r /usr/local/src/booktype/requirements/dev.txt
  2. sudo pip install -r /usr/local/src/booktype/requirements/prod.txt

Step 5 — Creating a Booktype Instance

A single Booktype server can host multiple instances, each with its own community of authors, groups, and books. This enables you to create separate environments for specific interests rather than throwing unrelated authors and book projects together on a general purpose platform.

Create a directory for the Booktype instances such as /var/www/booktype/:

  1. sudo mkdir /var/www/booktype/

Make sure it is owned by the www-data user which runs the web server:

  1. sudo chown www-data:www-data /var/www/booktype/

By default, Debian 8.2 does not allow the user www-data to enter commands. You will need to edit the line for www-data in the /etc/passwd file in order to continue:

  1. sudo nano /etc/passwd

Replace /usr/sbin/nologin with /bin/bash for the www-data user as follows:

www-data:x:33:33:www-data:/var/www:/bin/bash

Quit nano with Ctrl+X, saving the file when prompted.

Now switch to the www-data to start creating a Booktype instance:

  1. sudo su www-data

Create the first Booktype instance with the dev profile and a postgresql database in the /var/www/booktype/instance1 directory:

  1. cd /usr/local/src/booktype/scripts/
  2. ./createbooktype -p dev --check-versions --database postgresql /var/www/booktype/instance1

Change to the instance directory that was just created, and edit the base.py file which contains basic settings for the instance:

  1. cd /var/www/booktype/instance1/
  2. nano instance1_site/settings/base.py

There are several sections of this file which need to be edited to suit your installation. First, set the name and email address of the system administrator:

base.py
ADMINS = (
    # ('Your Name', 'sammy@example.com'),
)

Set the active profile to 'dev' for development, for the time being:

base.py
PROFILE_ACTIVE = 'dev'

Enter the site name of your Booktype instance:

base.py
BOOKTYPE_SITE_NAME = 'Your Booktype Site'

Enter the email addresses to use when sending notifications and reports as well as the outgoing mail server details. If you have installed Postfix on the Droplet, you can use default values of localhost and port 25 for the email server:

base.py
DEFAULT_FROM_EMAIL = 'robot@example.com'
REPORT_EMAIL_USER = 'sammy@example.com'

EMAIL_HOST = 'localhost'
EMAIL_PORT = 25

If you chose to install mPDF, enter the location of the installation directory:

base.py
MPDF_DIR = '/var/www/mpdf60/'

Enter the name of the default publisher to use if none is specified by the author:

base.py
DEFAULT_PUBLISHER = "Your Publishing Company"

If you’ve only just installed Redis and don’t use it for anything else, you can leave the defaults for REDIS STUFF as they are. If you have more than one application using the local Redis server, you will need to change the value of REDIS_DB to a number other than zero. The default for REDIS_PASSWORD is None, but if your Redis server requires a password, it must be surrounded by single or double quotes.

base.py
# REDIS STUFF
REDIS_HOST = 'localhost'
REDIS_PORT = 6379
REDIS_DB = 0
REDIS_PASSWORD = None

Set the instance time zone and default interface language code:

base.py
TIME_ZONE = 'Europe/Berlin'

LANGUAGE_CODE = 'en-us'

Authors will be able to select their own interface language from the installed Booktype localizations such as French or Spanish.

Save and exit the file.

Next, while still in the /var/www/booktype/instance1/ directory, edit the dev.py file which contains development settings for the Booktype instance:

  1. nano instance1_site/settings/dev.py

Enter the domain name and URL for your Booktype development server:

dev.py
THIS_BOOKTYPE_SERVER = 'booktype.example.com'
BOOKTYPE_URL='http://booktype.example.com'

Set the name, user, and password for the database connection. The username booktype-user and the PostgreSQL database name booktype-db should be the same ones you used in Step 3 — Setting Up The Database.

It should be similar to the following example:

dev.py
DATABASES = {'default':
                   {'ENGINE': 'django.db.backends.postgresql_psycopg2',
                    'NAME': 'booktype-db',
                    'USER': 'booktype-user',
                    'PASSWORD': 'booktype-password',
                    'HOST': 'localhost',
                    'PORT': ''
                   }
            }

Press Ctrl+O to save the file and Ctrl+X to quit the nano editor.

Note: When your Booktype instance is ready for deployment, you’ll be able to switch to the prod profile with a different domain name and database, while keeping your development profile available for testing.

Load the environment variables:

  1. . ./booktype.env

Initialize the database:

  1. ./manage.py syncdb

At the end of the process, you will see the following. Answer yes to create a superuser:

You have installed Django's auth system, and don't have any superusers defined.
Would you like to create one now? (yes/no): yes

Enter the required information as prompted:

Username (leave blank to use 'www-data'): admin
E-mail address: `sammy@example.com`
Password:
Password (again):
Superuser created successfully.

Collect static files from the Booktype component applications into a single directory.

  1. ./manage.py collectstatic

The server will respond:

You have requested to collect static files at the destination
location as specified in your settings:

    /var/www/booktype/instance1/static

This will overwrite existing files!
Are you sure you want to do this?

Type 'yes' to continue, or 'no' to cancel:

After typing yes and hitting the ENTER key, enter the following commands to fetch all installed Django applications and update their permissions then update the default roles for registered and anonymous users:

  1. ./manage.py update_permissions
  2. ./manage.py update_default_roles

Installation is now complete. Return to your normal non-root sudo user prompt in the terminal with the command:

  1. exit

You are no longer entering commands as the www-data user.

Step 6 — Configuring Apache

Copy the wsgi.apache file generated during the creation of the instance to the Apache configuration directory for virtual hosts:

  1. sudo cp /var/www/booktype/instance1/conf/wsgi.apache /etc/apache2/sites-available/booktype-instance1.conf

Edit the virtual host configuration file for the instance:

  1. sudo nano /etc/apache2/sites-available/booktype-instance1.conf

You should change at least the values for ServerName and SetEnv HTTP_HOST to the domain name configured for the server and ServerAdmin to the admin email address:

/etc/apache2/sites-available/booktype-instance1.conf
<VirtualHost *:80>

     # Change the following three lines for your server
     ServerName booktype.example.com
     SetEnv HTTP_HOST "booktype.example.com"
     ServerAdmin sammy@example.com

Because Debian 8.2 features Apache 2.4, you will need to uncomment Require all granted for all Location and Directory stanzas. To uncomment the Require all granted lines, remove the # character at the beginning of each of the lines:

/etc/apache2/sites-available/booktype-instance1.conf
     <Location "/">
       #Require all granted
       Options FollowSymLinks
     </Location>

     Alias /static/ "/var/www/booktype/instance1/static/"
     <Directory "/var/www/booktype/instance1/static/">
       #Require all granted
       Options -Indexes
     </Directory>

     Alias /data/ "/var/www/booktype/instance1/data/"
     <Directory "/var/www/booktype/instance1/data/">
       #Require all granted
       Options -Indexes
     </Directory>

Press Ctrl+O to save the file and Ctrl+X to quit the nano editor.

Then disable the default Apache configuration and enable the Booktype virtual host for the instance with the commands:

  1. sudo a2dissite 000-default.conf
  2. sudo a2ensite booktype-instance1.conf

Restart the Apache webserver to enable the changes with the command:

  1. sudo service apache2 restart

You should now be able to browse your Booktype instance, at the URL of the ServerName defined in the VirtualHost configuration such as booktype.example.com. Click the top of the Django debug toolbar to hide it (this toolbar will not be present when using the prod profile).

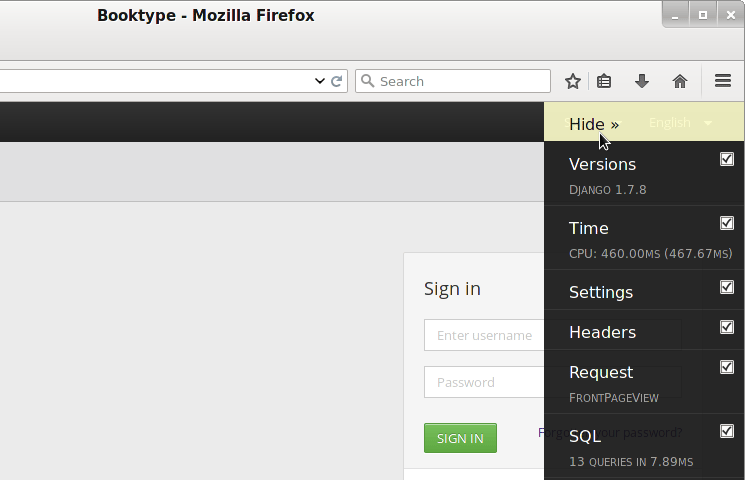

The Django debug toolbar can be hidden from view by clicking on it

Note: You can select an interface language from the drop-down menu in the top right corner of the browser window.

Sign in to Booktype using the superuser account details that you created earlier (admin in our example).

Booktype login dialog

After signing in, the gravatar associated with the superuser email address, if you have one, will be displayed in the People and My Profile boxes.

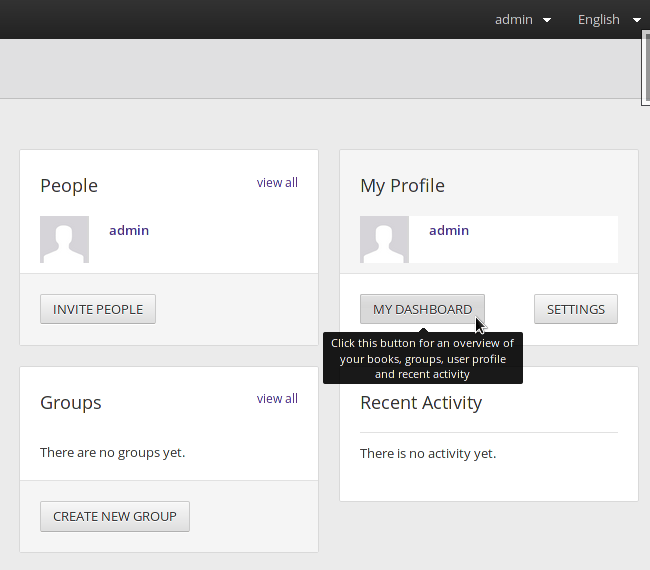

Booktype homepage

Step 7 — Running Celery With Supervisor

Celery is the task queue used by Booktype servers. Once you have installed Booktype, you are likely to need a process monitor to keep the Celery workers running in case of any crashes or reboots. You can install supervisord with the command:

  1. sudo apt-get install supervisor

The supervisord program automatically starts up after installation and is configured to start automatically on the next reboot of the server.

Now, we have to create a configuration file to use with Booktype and Celery with the command:

  1. sudo nano /etc/supervisor/conf.d/booktype-instance1.conf

For the first Booktype instance in /var/www/booktype/instance1 with ten workers, the contents of the file booktype-instance1.conf should be similar to:

/etc/supervisor/conf.d/booktype-instance1.conf
[program:celeryd]
command=/var/www/booktype/instance1/manage.py celery worker --concurrency=10 -l info
autostart=true
autorestart=true
startretries=3
stderr_logfile=/var/www/booktype/instance1/logs/booktype-celery.error.log
stdout_logfile=/var/www/booktype/instance1/logs/booktype-celery.output.log
user=www-data

After saving the booktype-instance1.conf file with Ctrl+O and exiting nano with Ctrl+X, enable the updates to the supervisord configuration with the commands:

  1. sudo supervisorctl reread
  2. sudo supervisorctl update

The supervisorctl program can also be used to check that supervisord is running celeryd:

  1. sudo supervisorctl

The output of this command should be similar to:

Output of sudo supervisorctl
celeryd RUNNING pid 24182, uptime 0:13:19

You should also see the following prompt:

supervisor>

Type the following command to exit from supervisorctl:

  1. quit

Conclusion

Now you and your team have everything you need to start writing and publishing books together! Please read the official Booktype manual for usage details.

Thanks for learning with the DigitalOcean Community. Check out our offerings for compute, storage, networking, and managed databases.

Learn more about our products

About the authors

Default avatar
Tammy Fox

editor


Still looking for an answer?

Ask a questionSearch for more help

Was this helpful?

7 Comments


This textbox defaults to using Markdown to format your answer.

You can type !ref in this text area to quickly search our full set of tutorials, documentation & marketplace offerings and insert the link!

Please note that there is no need to change the www-data shell in /etc/passwd really, just use:

su -s /bin/bash - www-data

Since the -s flag will override the configured shell

Thanks for this how-to!

Has anyone successfully installed the booktype software on a debian installation? Following this tutorial yields a 500, when the instructions can followed. I would really love to hear from someone who has successfully installed and used this product.

at the end of the installation, with no errors, booktype doesn’t seem to be installed properly.

Link to image of website

The link to download MDPF is dead (404). Replace http://mpdf1.com/repos/MPDF60.zip with http://www.mpdfonline.com/repos/MPDF_6_0.zip That link is the one displayed for v6.0 on http://mpdf1.com, which mentions the following dated 16/03/2016: “This mPDF website is now closed down. You can still download the latest mPDF package, and some example files from the site. More information in due course…”

Hi. I know this isn’t the right place for this question. But is anyone from Newscoop team available on Digital Ocean

Hi Jason, thanks for the workaround. It sounds like UTF-8 may not be the default locale on your system. In that case, it might be better to create the database like this:

sudo -u postgres createdb -E utf8 -T template0 -O booktype-user booktype-db

In step 3, I received an error after running

sudo -u postgres createdb -E utf8 -O booktype-user booktype-db

The error is:

createdb: database creation failed: ERROR:  new encoding (UTF8) is incompatible with the encoding of the template database (SQL_ASCII)
HINT:  Use the same encoding as in the template database, or use template0 as template.

I found the following fix:

in console run psql:

sudo -u postgres psql postgres

then in psql console execute sequence of commands:


 update pg_database set datallowconn = TRUE where datname = 'template0';
\c template0
update pg_database set datistemplate = FALSE where datname = 'template1';
drop database template1;
create database template1 with template = template0 encoding = 'UTF8';
update pg_database set datistemplate = TRUE where datname = 'template1';
\c template1
update pg_database set datallowconn = FALSE where datname = 'template0';

(press Ctrl-D to quit from psql)

Try DigitalOcean for free

Click below to sign up and get $200 of credit to try our products over 60 days!

Sign up

Join the Tech Talk
Success! Thank you! Please check your email for further details.

Please complete your information!

Featured on Community

Get our biweekly newsletter

Sign up for Infrastructure as a Newsletter.

Hollie's Hub for Good

Working on improving health and education, reducing inequality, and spurring economic growth? We'd like to help.

Become a contributor

Get paid to write technical tutorials and select a tech-focused charity to receive a matching donation.

Welcome to the developer cloud

DigitalOcean makes it simple to launch in the cloud and scale up as you grow — whether you're running one virtual machine or ten thousand.

Learn more
