How To Set Up a CD Pipeline with Spinnaker on DigitalOcean Kubernetes

The author selected the Free and Open Source Fund to receive a donation as part of the Write for DOnations program.

Introduction

Spinnaker is an open-source resource management and continuous delivery application for fast, safe, and repeatable deployments, using a powerful and customizable pipeline system. Spinnaker allows for automated application deployments to many platforms, including DigitalOcean Kubernetes. When deploying, you can configure Spinnaker to use built-in deployment strategies, such as Highlander and Red/black, with the option of creating your own deployment strategy. It can integrate with other DevOps tools, like Jenkins and TravisCI, and can be configured to monitor GitHub repositories and Docker registries.

Spinnaker is managed by Halyard, a tool specifically built for configuring and deploying Spinnaker to various platforms. Spinnaker requires external storage for persisting your application’s settings and pipelines. It supports different platforms for this task, like DigitalOcean Spaces.

In this tutorial, you’ll deploy Spinnaker to DigitalOcean Kubernetes using Halyard, with DigitalOcean Spaces as the underlying back-end storage. You’ll also configure Spinnaker to be available at your desired domain, secured using Let’s Encrypt TLS certificates. Then, you will create a sample application in Spinnaker, create a pipeline, and deploy a Hello World app to your Kubernetes cluster. After testing it, you’ll introduce authentication and authorization via GitHub Organizations. By the end, you will have a secured and working Spinnaker deployment in your Kubernetes cluster.

Prerequisites

• Halyard installed on your local machine, according to the official instructions. Please note that using Halyard on Ubuntu versions higher than 16.04 is not supported. In such cases, you can use it via Docker.

• A DigitalOcean Kubernetes cluster with your connection configured as the kubectl default. The cluster must have at least 8GB RAM and 4 CPU cores available for Spinnaker (more will be required in the case of heavier use). Instructions on how to configure kubectl are shown under the Connect to your Cluster step shown when you create your cluster. To create a Kubernetes cluster on DigitalOcean, see the Kubernetes Quickstart.

• An Nginx Ingress Controller and cert-manager installed on the cluster. For a guide on how to do this, see How to Set Up an Nginx Ingress with Cert-Manager on DigitalOcean Kubernetes.

• A DigitalOcean Space with API keys (access and secret). To create a DigitalOcean Space and API keys, see How To Create a DigitalOcean Space and API Key.

• A domain name with three DNS A records pointed to the DigitalOcean Load Balancer used by the Ingress. If you’re using DigitalOcean to manage your domain’s DNS records, consult How to Create DNS Records to create A records. In this tutorial, we’ll refer to the A records as spinnaker.example.com, spinnaker-api.example.com, and hello-world.example.com.

• A GitHub account, added to a GitHub Organization with admin permissions and public visibility. The account must also be a member of a Team in the Organization. This is required to complete Step 5.

Step 1 — Adding a Kubernetes Account with Halyard

In this section, you will add a Kubernetes account to Spinnaker via Halyard. An account, in Spinnaker’s terms, is a named credential it uses to access a cloud provider.

As part of the prerequisite, you created the echo1 and echo2 services and an echo_ingress ingress for testing purposes; you will not need these in this tutorial, so you can now delete them.

Start off by deleting the ingress by running the following command:

kubectl delete -f echo_ingress.yaml

Then, delete the two test services:

kubectl delete -f echo1.yaml && kubectl delete -f echo2.yaml

The kubectl delete command accepts the file to delete when passed the -f parameter.

Next, from your local machine, create a folder that will serve as your workspace:

mkdir ~/spinnaker-k8s

Navigate to your workspace by running the following command:

cd ~/spinnaker-k8s

Halyard does not yet know where it should deploy Spinnaker. Enable the Kubernetes provider with this command:

hal config provider kubernetes enable

You’ll receive the following output:

Output
+ Get current deployment
  Success
+ Edit the kubernetes provider
  Success
Problems in default.provider.kubernetes:
- WARNING Provider kubernetes is enabled, but no accounts have been
  configured.

+ Successfully enabled kubernetes

Halyard logged all the steps it took to enable the Kubernetes provider, and warned that no accounts are defined yet.

Next, you’ll create a Kubernetes service account for Spinnaker, along with RBAC. A service account is a type of account that is scoped to a single namespace. It is used by software, which may perform various tasks in the cluster. RBAC (Role Based Access Control) is a method of regulating access to resources in a Kubernetes cluster. It limits the scope of action of the account to ensure that no important configurations are inadvertently changed on your cluster.

Here, you will grant Spinnaker cluster-admin permissions to allow it to control the whole cluster. If you wish to create a more restrictive environment, consult the official Kubernetes documentation on RBAC.

First, create the spinnaker namespace by running the following command:

kubectl create ns spinnaker

The output will look like:

Output
namespace/spinnaker created

Run the following command to create a service account named spinnaker-service-account:

kubectl create serviceaccount spinnaker-service-account -n spinnaker

You’ve used the -n flag to specify that kubectl create the service account in the spinnaker namespace. The output will be:

Output
serviceaccount/spinnaker-service-account created

Then, bind it to the cluster-admin role:

kubectl create clusterrolebinding spinnaker-service-account --clusterrole cluster-admin --serviceaccount=spinnaker:spinnaker-service-account

You will see the following output:

Output
clusterrolebinding.rbac.authorization.k8s.io/spinnaker-service-account created

Halyard uses the local kubectl to access the cluster. You’ll need to configure it to use the newly created service account before deploying Spinnaker. Kubernetes accounts authenticate using usernames and tokens. When a service account is created, Kubernetes makes a new secret and populates it with the account token. To retrieve the token for the spinnaker-service-account, you’ll first need to get the name of the secret. You can fetch it into a console variable, named TOKEN_SECRET, by running:

TOKEN_SECRET=$(kubectl get serviceaccount -n spinnaker spinnaker-service-account -o jsonpath='{.secrets[0].name}')

This gets information about the spinnaker-service-account from the namespace spinnaker, and fetches the name of the first secret it contains by passing in a JSON path.

Fetch the contents of the secret into a variable named TOKEN by running:

TOKEN=$(kubectl get secret -n spinnaker $TOKEN_SECRET -o jsonpath='{.data.token}' | base64 --decode)

You now have the token available in the environment variable TOKEN. Next, you’ll need to set credentials for the service account in kubectl:

kubectl config set-credentials spinnaker-token-user --token $TOKEN

You will see the following output:

Output
User "spinnaker-token-user" set.

Then, you’ll need to set the user of the current context to the newly created spinnaker-token-user by running the following command:

kubectl config set-context --current --user spinnaker-token-user

By setting the current user to spinnaker-token-user, kubectl is now configured to use the spinnaker-service-account, but Halyard does not know anything about that. Add an account to its Kubernetes provider by executing:

hal config provider kubernetes account add spinnaker-account --provider-version v2

The output will look like this:

Output
+ Get current deployment
  Success
+ Add the spinnaker-account account
  Success
+ Successfully added account spinnaker-account for provider
  kubernetes.

This commmand adds a Kubernetes account to Halyard, named spinnaker-account, and marks it as a service account.

Generally, Spinnaker can be deployed in two ways: distributed installation or local installation. Distributed installation is what you’re completing in this tutorial—you’re deploying it to the cloud. Local installation, on the other hand, means that Spinnaker will be downloaded and installed on the machine Halyard runs on. Because you’re deploying Spinnaker to Kubernetes, you’ll need to mark the deployment as distributed, like so:

hal config deploy edit --type distributed --account-name spinnaker-account

Since your Spinnaker deployment will be building images, it is necessary to enable artifacts in Spinnaker. You can enable them by running the following command:

hal config features edit --artifacts true

Here you’ve enabled artifacts to allow Spinnaker to store more metadata about the objects it creates.

You’ve added a Kubernetes account to Spinnaker, via Halyard. You enabled the Kubernetes provider, configured RBAC roles, and added the current kubectl config to Spinnaker, thus adding an account to the provider. Now you’ll set up your back-end storage.

Step 2 — Configuring the Space as the Underlying Storage

In this section, you will configure the Space as the underlying storage for the Spinnaker deployment. Spinnaker will use the Space to store its configuration and pipeline-related data.

To configure S3 storage in Halyard, run the following command:

hal config storage s3 edit --access-key-id your_space_access_key --secret-access-key --endpoint spaces_endpoint_with_region_prefix --bucket space_name --no-validate

Remember to replace your_space_access_key with your Space access key and spaces_endpoint_with_region_prefix with the endpoint of your Space. This is usually region-id.digitaloceanspaces.com, where region-id is the region of your Space. You can replace space_name with the name of your Space. The --no-validate flag tells Halyard not to validate the settings given right away, because DigitalOcean Spaces validation is not supported.

Once you’ve run this command, Halyard will ask you for your secret access key. Enter it to continue and you’ll then see the following output:

Output
+ Get current deployment
  Success
+ Get persistent store
  Success
+ Edit persistent store
  Success
+ Successfully edited persistent store "s3".

Now that you’ve configured s3 storage, you’ll ensure that your deployment will use this as its storage by running the following command:

hal config storage edit --type s3

The output will look like this:

Output
+ Get current deployment
  Success
+ Get persistent storage settings
  Success
+ Edit persistent storage settings
  Success
+ Successfully edited persistent storage.

You’ve set up your Space as the underlying storage that your instance of Spinnaker will use. Now you’ll deploy Spinnaker to your Kubernetes cluster and expose it at your domains using the Nginx Ingress Controller.

Step 3 — Deploying Spinnaker to Your Cluster

In this section, you will deploy Spinnaker to your cluster using Halyard, and then expose its UI and API components at your domains using an Nginx Ingress. First, you’ll configure your domain URLs: one for Spinnaker’s user interface and one for the API component. Then you’ll pick your desired version of Spinnaker and deploy it using Halyard. Finally you’ll create an ingress and configure it as an Nginx controller.

First, you’ll need to edit Spinnaker’s UI and API URL config values in Halyard and set them to your desired domains. To set the API endpoint to your desired domain, run the following command:

hal config security api edit --override-base-url https://spinnaker-api.example.com

The output will look like:

Output
+ Get current deployment
  Success
+ Get API security settings
  Success
+ Edit API security settings
  Success
...

To set the UI endpoint to your domain, which is where you will access Spinnaker, run:

hal config security ui edit --override-base-url https://spinnaker.example.com

The output will look like:

Output
+ Get current deployment
  Success
+ Get UI security settings
  Success
+ Edit UI security settings
  Success
+ Successfully updated UI security settings.

Remember to replace spinnaker-api.example.com and spinnaker.example.com with your domains. These are the domains you have pointed to the Load Balancer that you created during the Nginx Ingress Controller prerequisite.

You’ve created and secured Spinnaker’s Kubernetes account, configured your Space as its underlying storage, and set its UI and API endpoints to your domains. Now you can list the available Spinnaker versions:

hal version list

Your output will show a list of available versions. At the time of writing this article 1.13.5 was the latest version:

Output
+ Get current deployment
  Success
+ Get Spinnaker version
  Success
+ Get released versions
  Success
+ You are on version "", and the following are available:
 - 1.11.12 (Cobra Kai):
   Changelog: https://gist.GitHub.com/spinnaker-release/29a01fa17afe7c603e510e202a914161
   Published: Fri Apr 05 14:55:40 UTC 2019
   (Requires Halyard >= 1.11)
 - 1.12.9 (Unbreakable):
   Changelog: https://gist.GitHub.com/spinnaker-release/7fa9145349d6beb2f22163977a94629e
   Published: Fri Apr 05 14:11:44 UTC 2019
   (Requires Halyard >= 1.11)
 - 1.13.5 (BirdBox):
   Changelog: https://gist.GitHub.com/spinnaker-release/23af06bc73aa942c90f89b8e8c8bed3e
   Published: Mon Apr 22 14:32:29 UTC 2019
   (Requires Halyard >= 1.17)

To select a version to install, run the following command:

hal config version edit --version 1.13.5

It is recommended to always select the latest version, unless you encounter some kind of regression.

You will see the following output:

Output
+ Get current deployment
  Success
+ Edit Spinnaker version
  Success
+ Spinnaker has been configured to update/install version "version".
  Deploy this version of Spinnaker with `hal deploy apply`.

You have now fully configured Spinnaker’s deployment. You’ll deploy it with the following command:

hal deploy apply

This command could take a few minutes to finish.

The final output will look like this:

Output
+ Get current deployment
  Success
+ Prep deployment
  Success
+ Preparation complete... deploying Spinnaker
+ Get current deployment
  Success
+ Apply deployment
  Success
+ Deploy spin-redis
  Success
+ Deploy spin-clouddriver
  Success
+ Deploy spin-front50
  Success
+ Deploy spin-orca
  Success
+ Deploy spin-deck
  Success
+ Deploy spin-echo
  Success
+ Deploy spin-gate
  Success
+ Deploy spin-rosco
  Success
...

Halyard is showing you the deployment status of each of Spinnaker’s microservices. Behind the scenes, it calls kubectl to install them.

Kubernetes will take some time—ten minutes on average—to bring all of the containers up, especially for the first time. You can watch the progress by running the following command:

kubectl get pods -n spinnaker -w

You’ve deployed Spinnaker to your Kubernetes cluster, but it can’t be accessed beyond your cluster.

You’ll be storing the ingress configuration in a file named spinnaker-ingress.yaml. Create it using your text editor:

nano spinnaker-ingress.yaml

Add the following lines:

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: spinnaker-ingress
  namespace: spinnaker
  annotations:
    kubernetes.io/ingress.class: nginx
    certmanager.k8s.io/cluster-issuer: letsencrypt-prod
spec:
  tls:
  - hosts:
    - spinnaker-api.example.com
    - spinnaker.example.com
    secretName: spinnaker
  rules:
  - host: spinnaker-api.example.com
    http:
      paths:
      - backend:
          serviceName: spin-gate
          servicePort: 8084
  - host: spinnaker.example.com
    http:
      paths:
      - backend:
          serviceName: spin-deck
          servicePort: 9000

Remember to replace spinnaker-api.example.com with your API domain, and spinnaker.example.com with your UI domain.

The configuration file defines an ingress called spinnaker-ingress. The annotations specify that the controller for this ingress will be the Nginx controller, and that the letsencrypt-prod cluster issuer will generate the TLS certificates, defined in the prerequisite tutorial.

Then, it specifies that TLS will secure the UI and API domains. It sets up routing by directing the API domain to the spin-gate service (Spinnaker’s API containers), and the UI domain to the spin-deck service (Spinnaker’s UI containers) at the appropriate ports 8084 and 9000.

Save and close the file.

Create the Ingress in Kubernetes by running:

kubectl create -f spinnaker-ingress.yaml

You’ll see the following output:

Output
ingress.extensions/spinnaker-ingress created

Wait a few minutes for Let’s Encrypt to provision the TLS certificates, and then navigate to your UI domain, spinnaker.example.com, in a browser. You will see Spinnaker’s user interface.

You’ve deployed Spinnaker to your cluster, exposed the UI and API components at your domains, and tested if it works. Now you’ll create an application in Spinnaker and run a pipeline to deploy the Hello World app.

Step 4 — Creating an Application and Running a Pipeline

In this section, you will use your access to Spinnaker at your domain to create an application with it. You’ll then create and run a pipeline to deploy a Hello World app, which can be found at paulbouwer/hello-kubernetes. You’ll access the app afterward.

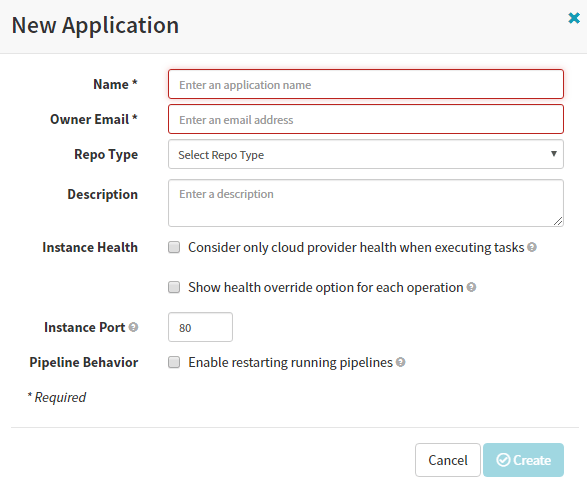

Navigate to your domain where you have exposed Spinnaker’s UI. In the upper right corner, press on Actions, then select Create Application. You will see the New Application form.

Type in hello-world as the name, input your email address, and press Create.

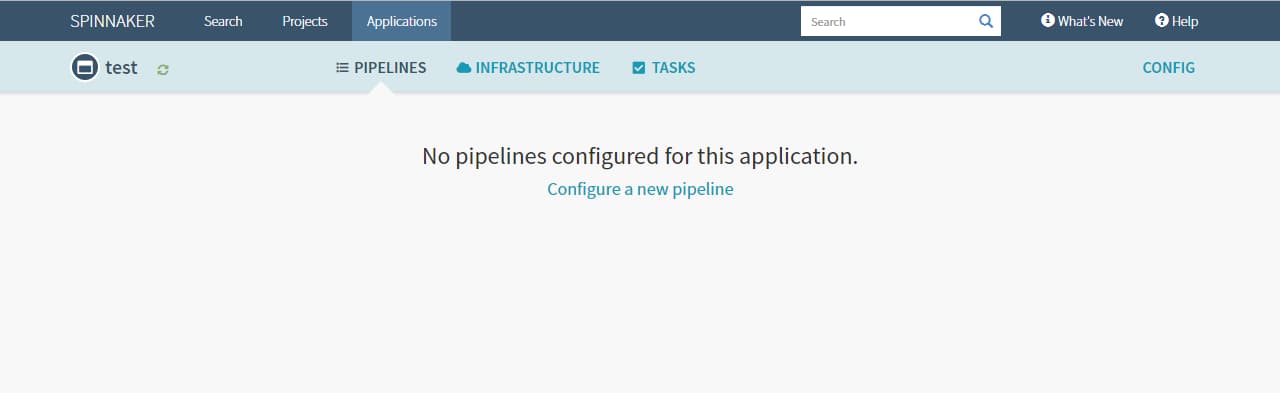

When the page loads, navigate to Pipelines by clicking the first tab in the top menu. You will see that there are no pipelines defined yet.

Press on Configure a new pipeline and a new form will open.

Fill in Deploy Hello World Application as your pipeline’s name, and press Create.

On the next page, click the Add Stage button. As the Type, select Deploy (Manifest), which is used for deploying Kubernetes manifests you specify. For the Stage Name, type in Deploy Hello World. Scroll down, and in the textbox under Manifest Configuration, enter the following lines:

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: hello-world-ingress
  namespace: spinnaker
  annotations:
    kubernetes.io/ingress.class: nginx
    certmanager.k8s.io/cluster-issuer: letsencrypt-prod
spec:
  tls:
  - hosts:
    - hello-world.example.com
    secretName: hello-world
  rules:
  - host: hello-world.example.com
    http:
      paths:
      - backend:
          serviceName: hello-kubernetes
          servicePort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: hello-kubernetes
  namespace: spinnaker
spec:
  type: ClusterIP
  ports:
  - port: 80
    targetPort: 8080
  selector:
    app: hello-kubernetes
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: hello-kubernetes
  namespace: spinnaker
spec:
  replicas: 3
  selector:
    matchLabels:
      app: hello-kubernetes
  template:
    metadata:
      labels:
        app: hello-kubernetes
    spec:
      containers:
      - name: hello-kubernetes
        image: paulbouwer/hello-kubernetes:1.5
        ports:
        - containerPort: 8080

Remember to replace hello-world.example.com with your domain, which is also pointed at your Load Balancer.

In this configuration, you define a Deployment, consisting of three replicas of the paulbouwer/hello-kubernetes:1.5 image. You also define a Service to be able to access it and an Ingress to expose the Service at your domain.

Press Save Changes in the bottom right corner of the screen. When it finishes, navigate back to Pipelines. On the right side, select the pipeline you just created and press the Start Manual Execution link. When asked to confirm, press Run.

This pipeline will take a short time to complete. You will see the progress bar complete when it has successfully finished.

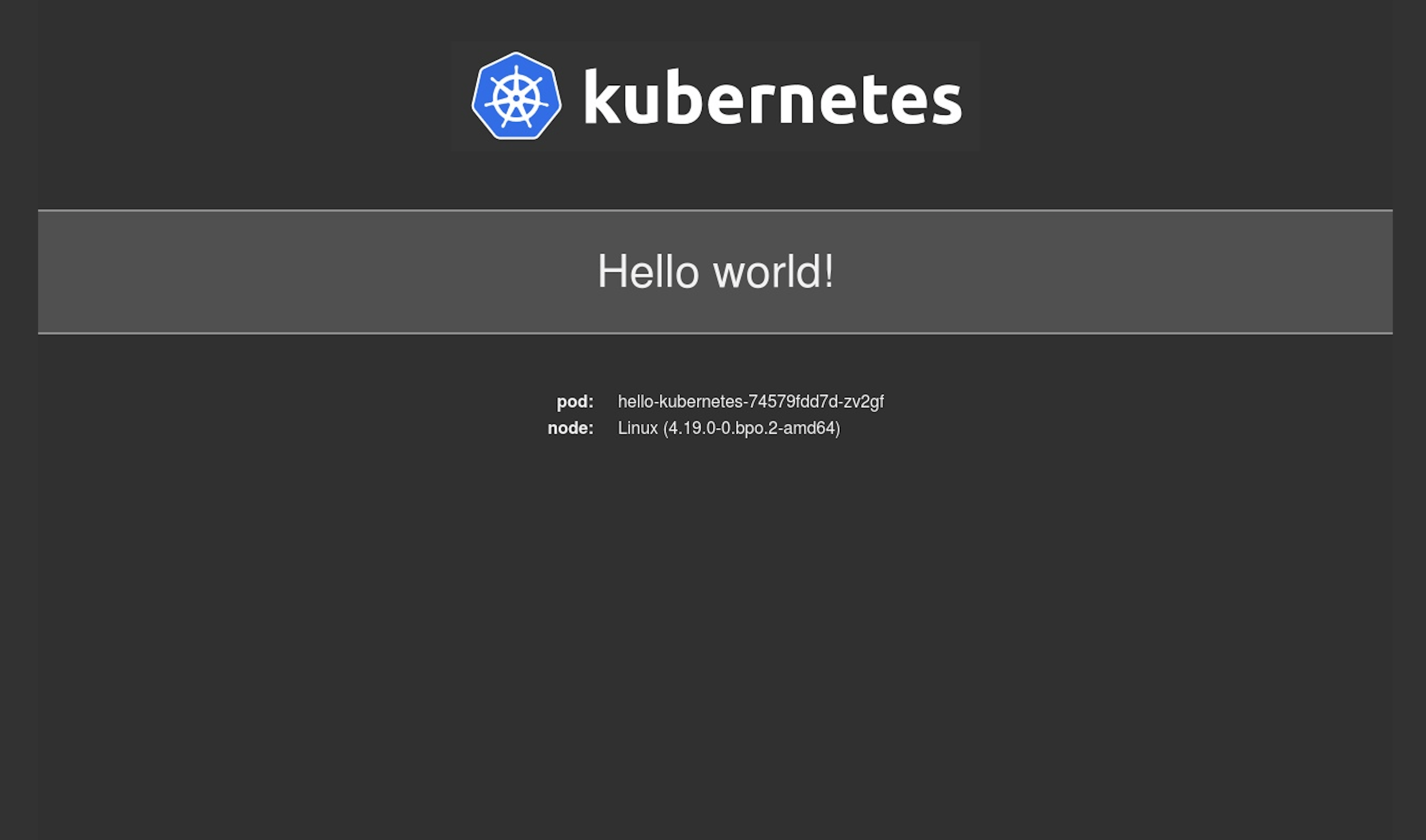

You can now navigate to the domain you defined in the configuration. You will see the Hello World app, which Spinnaker just deployed.

You’ve created an application in Spinnaker, ran a pipeline to deploy a Hello World app, and accessed it. In the next step, you will secure Spinnaker by enabling GitHub Organizations authorization.

Step 5 — Enabling Role-Based Access with GitHub Organizations

In this section, you will enable GitHub OAuth authentication and GitHub Organizations authorization. Enabling GitHub OAuth authentication forces Spinnaker users to log in via GitHub, therefore preventing anonymous access. Authorization via GitHub Organizations restricts access only to those in an Organization. A GitHub Organization can contain Teams (named groups of members), which you will be able to use to restrict access to resources in Spinnaker even further.

For OAuth authentication to work, you’ll first need to set up the authorization callback URL, which is where the user will be redirected after authorization. This is your API domain ending with /login. You need to specify this manually to prevent Spinnaker and other services from guessing. To configure this, run the following command:

hal config security authn oauth2 edit --pre-established-redirect-uri https://spinnaker-api.example.com/login

You will see this output:

Output
+ Get current deployment
  Success
+ Get authentication settings
  Success
+ Edit oauth2 authentication settings
  Success
+ Successfully edited oauth2 method.

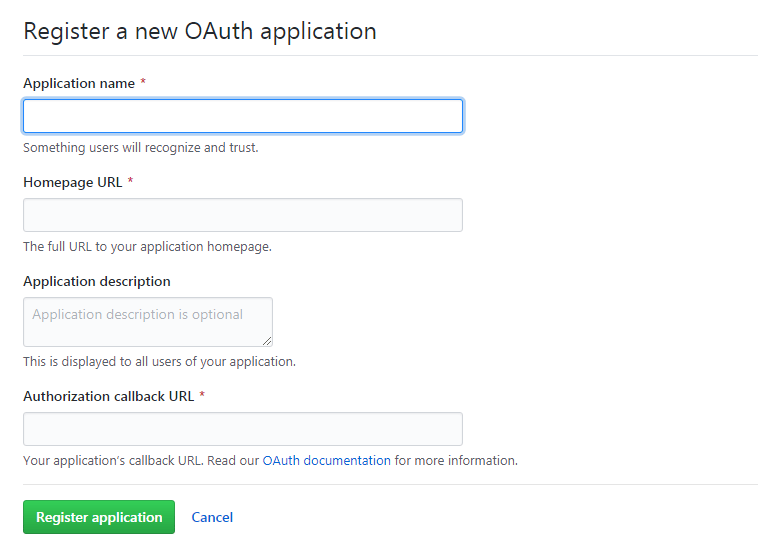

To set up OAuth authentication with GitHub, you’ll need to create an OAuth application for your Organization. To do so, navigate to your Organization on GitHub, go to Settings, click on Developer Settings, and then select OAuth Apps from the left-hand menu. Afterward, click the New OAuth App button on the right. You will see the Register a new OAuth application form.

Enter spinnaker-auth as the name. For the Homepage URL, enter https://spinnaker.example.com, and for the Authorization callback URL, enter https://spinnaker-api.example.com/login. Then, press Register Application.

You’ll be redirected to the settings page for your new OAuth app. Note the Client ID and Client Secret values—you’ll need them for the next command.

With the OAuth app created, you can configure Spinnaker to use the OAuth app by running the following command:

hal config security authn oauth2 edit --client-id client_id --client-secret client_secret --provider GitHub

Remember to replace client_id and client_secret with the values shown on the GitHub settings page.

You output will be similar to the following:

Output
+ Get current deployment
  Success
+ Get authentication settings
  Success
+ Edit oauth2 authentication settings
  Success
Problems in default.security.authn:
- WARNING An authentication method is fully or partially
  configured, but not enabled. It must be enabled to take effect.

+ Successfully edited oauth2 method.

You’ve configured Spinnaker to use the OAuth app. Now, to enable it, execute:

hal config security authn oauth2 enable

The output will look like:

Output
+ Get current deployment
  Success
+ Edit oauth2 authentication settings
  Success
+ Successfully enabled oauth2

You’ve configured and enabled GitHub OAuth authentication. Now users will be forced to log in via GitHub in order to access Spinnaker. However, right now, everyone who has a GitHub account can log in, which is not what you want. To overcome this, you’ll configure Spinnaker to restrict access to members of your desired Organization.

You’ll need to set this up semi-manually via local config files, because Halyard does not yet have a command for setting this. During deployment, Halyard will use the local config files to override the generated configuration.

Halyard looks for custom configuration under ~/.hal/default/profiles/. Files named service-name-*.yml are picked up by Halyard and used to override the settings of a particular service. The service that you’ll override is called gate, and serves as the API gateway for the whole of Spinnaker.

Create a file under ~/.hal/default/profiles/ named gate-local.yml:

nano ~/.hal/default/profiles/gate-local.yml

Add the following lines:

security:
 oauth2:
   providerRequirements:
     type: GitHub
     organization: your_organization_name

Replace your_organization_name with the name of your GitHub Organization. Save and close the file.

With this bit of configuration, only members of your GitHub Organization will be able to access Spinnaker.

Now, you’ll integrate Spinnaker with an even more particular access-rule solution: GitHub Teams. This will enable you to specify which Team(s) will have access to resources created in Spinnaker, such as applications.

To achieve this, you’ll need to have a GitHub Personal Access Token for an admin account in your Organization. To create one, visit Personal Access Tokens and press the Generate New Token button. On the next page, give it a description of your choice and be sure to check the read:org scope, located under admin:org. When you are done, press Generate token and note it down when it appears—you won’t be able to see it again.

To configure GitHub Teams role authorization in Spinnaker, run the following command:

hal config security authz github edit --accessToken access_token --organization organization_name --baseUrl https://api.github.com

Be sure to replace access_token with your personal access token you generated and replace organization_name with the name of the Organization.

The output will be:

Output
+ Get current deployment
  Success
+ Get GitHub group membership settings
  Success
+ Edit GitHub group membership settings
  Success
+ Successfully edited GitHub method.

You’ve updated your GitHub group settings. Now, you’ll set the authorization provider to GitHub by running the following command:

hal config security authz edit --type github

The output will look like:

Output
+ Get current deployment
  Success
+ Get group membership settings
  Success
+ Edit group membership settings
  Success
+ Successfully updated roles.

After updating these settings, enable them by running:

hal config security authz enable

You’ll see the following output:

Output
+ Get current deployment
  Success
+ Edit authorization settings
  Success
+ Successfully enabled authorization

With all the changes in place, you can now apply the changes to your running Spinnaker deployment. Execute the following command to do this:

hal deploy apply

Once it has finished, wait for Kubernetes to propagate the changes. This can take quite some time—you can watch the progress by running:

kubectl get pods -n spinnaker -w

When all the pods’ states become Running and availability 1/1, navigate to your Spinnaker UI domain. You will be redirected to GitHub and asked to log in, if you’re not already. If the account you logged in with is a member of the Organization, you will be redirected back to Spinnaker and logged in. Otherwise, you will be denied access with a message that looks like this:

{"error":"Unauthorized", "message":"Authentication Failed: User's provider info does not have all required fields.", "status":401, "timestamp":...}

The effect of GitHub Teams integration is that Spinnaker now translates them into roles. You can use these roles in Spinnaker to incorporate additional restrictions to access for members of particular teams. If you try to add another application, you’ll notice that you can now also specify permissions, which combine the level of access—read only or read and write—with a role, for that application.

You’ve set up GitHub authentication and authorization. You have also configured Spinnaker to restrict access to members of your Organization, learned about roles and permissions, and considered the place of GitHub Teams when integrated with Spinnaker.

Conclusion

You have successfully configured and deployed Spinnaker to your DigitalOcean Kubernetes cluster. You can now manage and use your cloud resources more easily, from a central place. You can use triggers to automatically start a pipeline; for example, when a new Docker image has been added to the registry. To learn more about Spinnaker’s terms and architecture, visit the official documentation. If you wish to deploy a private Docker registry to your cluster to hold your images, visit How To Set Up a Private Docker Registry on Top of DigitalOcean Spaces and Use It with DO Kubernetes.
