OTRS, also known as Open source Ticket Request System, is a help desk and IT service management system. It provides a single point of contact for users, customers, IT personnel, IT services, and any external organizations. The program is written in Perl, supports a variety of databases (MySQL, PostgreSQL, etc.), and can integrate with LDAP directories.
In this tutorial, you will install OTRS Community Edition on an Ubuntu 18.04 server and set up a simple help desk system, which will allow you to receive and process requests from your customers using both the web interface and email.
To complete this tutorial, you will need the following:
An Ubuntu 18.04 server set up by following our Initial Server Setup Guide for Ubuntu 18.04, including a non-root user with sudo privileges and a firewall configured with ufw
.
Apache and MySQL installed on your Ubuntu server. Follow step 1 and 2 of this guide to configure these.
A fully registered domain name. This tutorial will use example.com
throughout. You can purchase a domain name on Namecheap, get one for free on Freenom, or use the domain registrar of your choice.
Both of the following DNS records set up for your server. You can follow this introduction to DigitalOcean DNS for details on how to add them.
example.com
pointing to your server’s public IP address.www.example.com
pointing to your server’s public IP address.A TLS/SSL certificate installed on your Ubuntu 18.04 server for your domain. You can follow the Let’s Encrypt on Ubuntu 18.04 guide to obtain a free TLS/SSL certificate.
Postfix mail transfer agent set up by following our tutorial How To Install and Configure Postfix on Ubuntu 18.04.
(Optional) A dedicated Gmail account with IMAP access enabled, 2-step verification, and an App password generated with the Other (Custom name) option. When you generate the App password, write it down so that you can use it in Step 5. You will use Gmail to configure inbound mail ticket creation in OTRS, with Gmail as your IMAPS mailbox. This is just one method of configuring inbound mail for OTRS; if you would like to explore other options, check out the OTRS documentation.
Warning: Do not use any of your own active Gmail accounts to configure inbound mail for OTRS. When imap.gmail.com
forwards emails to OTRS, all emails in the Gmail account are deleted. Because of this, it is a better option to create a new Gmail account to use specifically for OTRS.
In this step, you will install OTRS and a set of Perl modules that will increase the system’s functionality.
OTRS is available in Ubuntu’s package manager, but the official documentation suggests installing OTRS from source.
To do this, first log into your Ubuntu server as your non-root user:
- ssh sammy@Ubuntu_Server_IP
Then download the source archive with the wget
command. For this tutorial, you will download version 6.0.19; you can find the latest available version on the OTRS download page.
- wget http://ftp.otrs.org/pub/otrs/otrs-6.0.19.tar.gz
Next, unpack the compressed file with tar
:
- tar xzf otrs-6.0.19.tar.gz
Move the contents of the archive into the /opt/otrs
directory:
- sudo mv otrs-6.0.19 /opt/otrs
Because OTRS is written in Perl, it uses a number of Perl modules. Check for missing modules by using the CheckModules.pl
script included with OTRS:
- sudo /opt/otrs/bin/otrs.CheckModules.pl
You’ll see output like this, listing which modules you already have downloaded and which you are missing:
Output o Apache::DBI......................FAILED! Not all prerequisites for this module correctly installed.
o Apache2::Reload..................ok (v0.13)
. . .
o XML::LibXML......................Not installed! Use: 'apt-get install -y libxml-libxml-perl' (required - Required for XML processing.)
o XML::LibXSLT.....................Not installed! Use: 'apt-get install -y libxml-libxslt-perl' (optional - Required for Generic Interface XSLT mapping module.)
o XML::Parser......................Not installed! Use: 'apt-get install -y libxml-parser-perl' (optional - Recommended for XML processing.)
o YAML::XS.........................Not installed! Use: 'apt-get install -y libyaml-libyaml-perl' (required - Required for fast YAML processing.)
Some modules are only needed for optional functionality, such as communication with other databases or handling mail with specific character sets; others are necessary for the program to work.
Although the suggested commands to download these modules use apt-get
, this tutorial will install the missing modules with the apt
command, which is the suggested best practice for Ubuntu 18.04. Feel free to go through these modules manually, or use the following command:
$ sudo apt install libapache2-mod-perl2 libdbd-mysql-perl libtimedate-perl libnet-dns-perl libnet-ldap-perl \
libio-socket-ssl-perl libpdf-api2-perl libsoap-lite-perl libtext-csv-xs-perl \
libjson-xs-perl libapache-dbi-perl libxml-libxml-perl libxml-libxslt-perl libyaml-perl \
libarchive-zip-perl libcrypt-eksblowfish-perl libencode-hanextra-perl libmail-imapclient-perl \
libtemplate-perl libdatetime-perl
Whenever you’re done installing these modules, rerun the script to make sure that all the required modules have been installed:
- sudo /opt/otrs/bin/otrs.CheckModules.pl
Your output will now show all the installed modules:
Output...
o Text::CSV_XS.....................ok (v1.34)
o Time::HiRes......................ok (v1.9741)
o XML::LibXML......................ok (v2.0128)
o XML::LibXSLT.....................ok (v1.95)
o XML::Parser......................ok (v2.44)
o YAML::XS.........................ok (v0.69)
Now that you have OTRS and its dependencies installed on your server, you can configure OTRS to use Apache and MySQL.
In this step, you will create a system user for OTRS, and then configure Apache and MySQL server to work with OTRS.
Create a user named otrs
to run OTRS functions with the useradd
command:
- sudo useradd -d /opt/otrs -c 'OTRS user' otrs
-d
sets the user’s home directory as /opt/otrs
, and -c
sets the 'OTRS user'
comment to describe the user.
Next, add otrs
to the webserver group:
- sudo usermod -G www-data otrs
OTRS comes with a default config file /opt/otrs/Kernel/Config.pm.dist
. Activate this by copying it without the .dist
filename extension:
- sudo cp /opt/otrs/Kernel/Config.pm.dist /opt/otrs/Kernel/Config.pm
Now, navigate to the /opt/otrs
directory:
- cd /opt/otrs
From here, run the otrs.SetPermissions.pl
script. It will detect the correct user and group settings and set the file and directory permissions for OTRS.
- sudo bin/otrs.SetPermissions.pl
This will yield the following output:
OutputSetting permissions on /opt/otrs
The correct permissions are now set.
Next, activate the apache2
configuration file and make sure it is loaded after all other configurations. To do this, make a symbolic link with the zzz_
prefix:
- sudo ln -s /opt/otrs/scripts/apache2-httpd.include.conf /etc/apache2/sites-enabled/zzz_otrs.conf
OTRS requires a few Apache modules to be active for optimal operation. You can activate them via the tool a2enmod
. Although some of these have already been enabled, it is a good idea to check them all:
- sudo a2enmod perl
- sudo a2enmod headers
- sudo a2enmod deflate
- sudo a2enmod filter
These modules enable Apache to work with Perl, control HTTP headers, compress server output, and configure output content filters.
Restart your web server to apply new configurations:
- sudo systemctl restart apache2
Before you go to the next step and run the web installer, change some of the MySQL configuration settings. Open the MySQL configuration file in your preferred text editor. This tutorial uses nano
:
- sudo nano /etc/mysql/mysql.conf.d/mysqld.cnf
Look for the following options under the [mysqld]
section. For max_allowed_packet
and query_cache_size
, change the values to 64M
and 32M
respectively, as highlighted in the following code block:
...
max_allowed_packet = 64M
thread_stack = 192K
thread_cache_size = 8
# This replaces the startup script and checks MyISAM tables if needed
# the first time they are touched
myisam-recover-options = BACKUP
#max_connections = 100
#table_open_cache = 64
#thread_concurrency = 10
#
# * Query Cache Configuration
#
query_cache_limit = 1M
query_cache_size = 32M
...
This adjusts the maximum allowed packet size and the query cache size so that MySQL can interface with OTRS.
Then add the following highlighted additional options under the [mysqld]
section, at the end of the file:
...
# ssl-cert=/etc/mysql/server-cert.pem
# ssl-key=/etc/mysql/server-ikey.pem
innodb_log_file_size = 256M
collation-server = utf8_unicode_ci
init-connect='SET NAMES utf8'
character-set-server = utf8
This sets the database logfile size, determines the character set and collation, and creates an init_connect
string to set the character set upon starting the MySQL server.
Save and close mysqld.cnf
by pressing CTRL
+ X
, followed by Y
and then ENTER
. Then, restart your MySQL server to apply the new parameters:
- sudo systemctl restart mysql.service
Now that you have created the otrs
user and configured Apache and MySQL to work with OTRS, you are ready to use the web installer.
In this step, you will configure OTRS’s database settings in a web browser and start the OTRS daemon process on the command line.
Open https://example.com/otrs/installer.pl
in your favorite web browser, replacing example.com

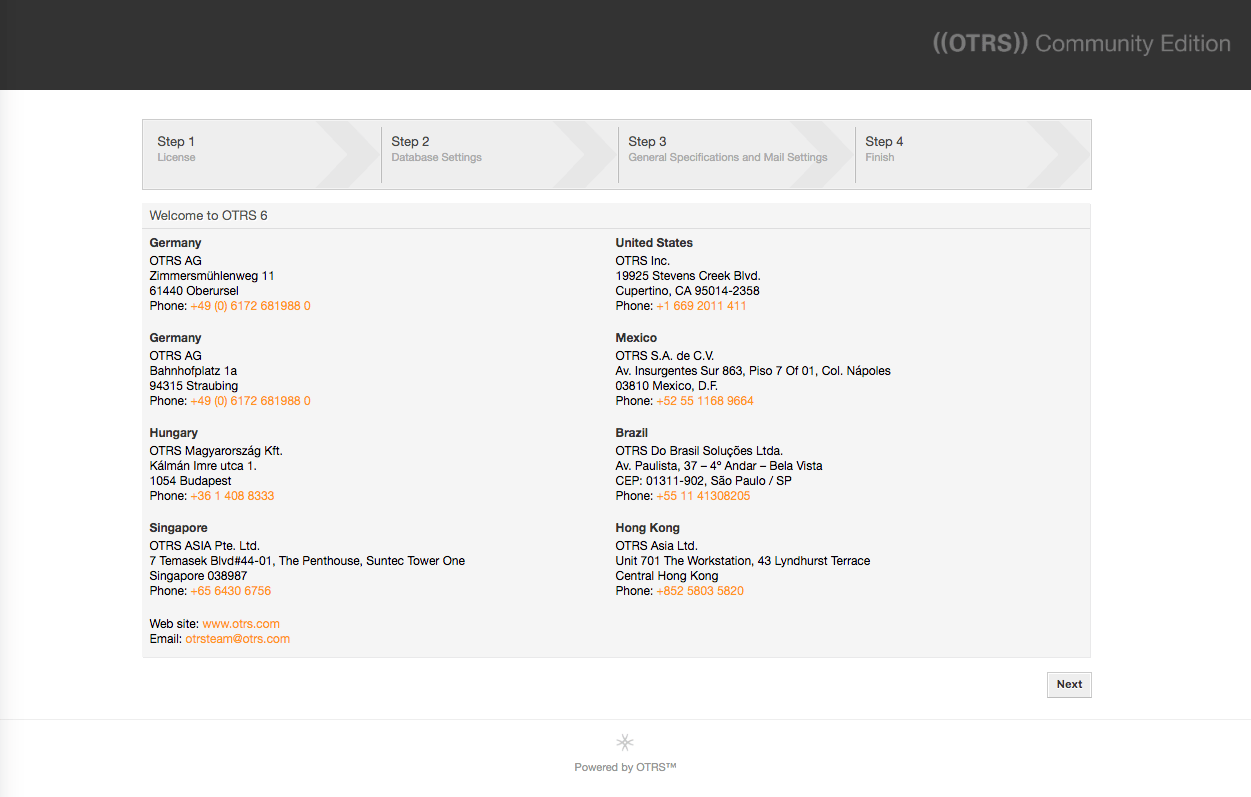

with your domain name. You will find a welcome screen with the message Welcome to OTRS 6 and information about the OTRS offices.
Click Next. The next screen will have the license for OTRS, which is the GNU General Public License common to open source programs. Accept by clicking Accept license and continue after reading.

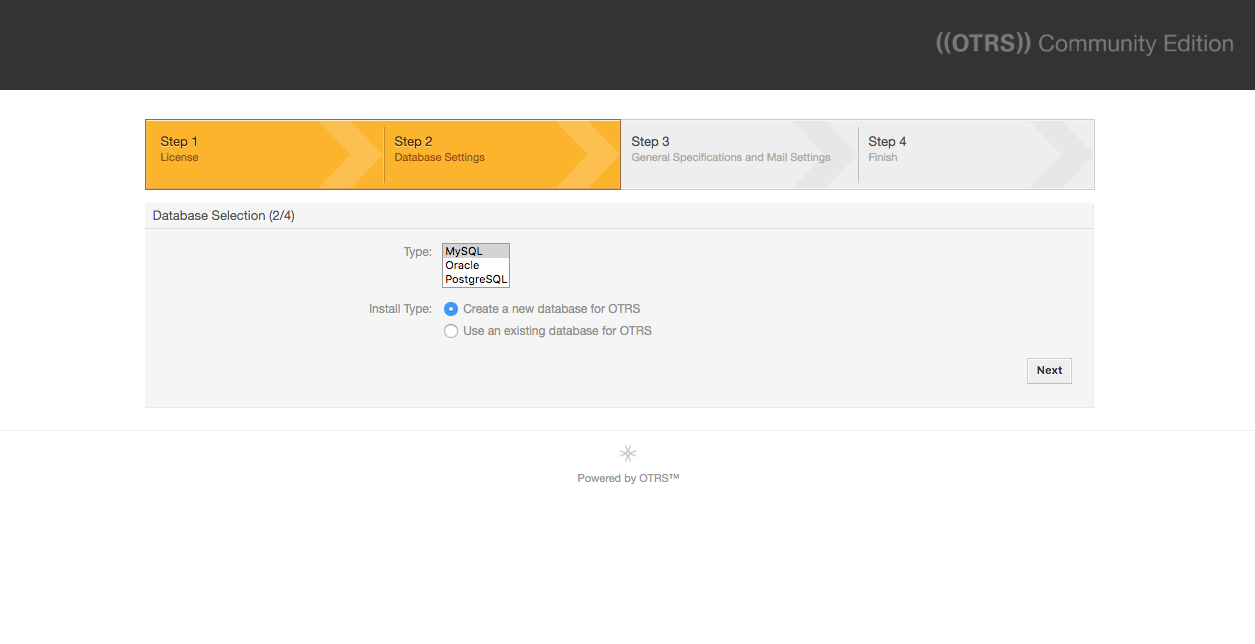

On the next screen, you will be prompted to select a database type. The defaults (MySQL and Create a new database for OTRS) are fine for your setup, so click Next to proceed.
On the next screen, enter the MySQL credentials that you set up during the MySQL server installation. Use root for the User field, then enter the password you created. Leave the default host value.

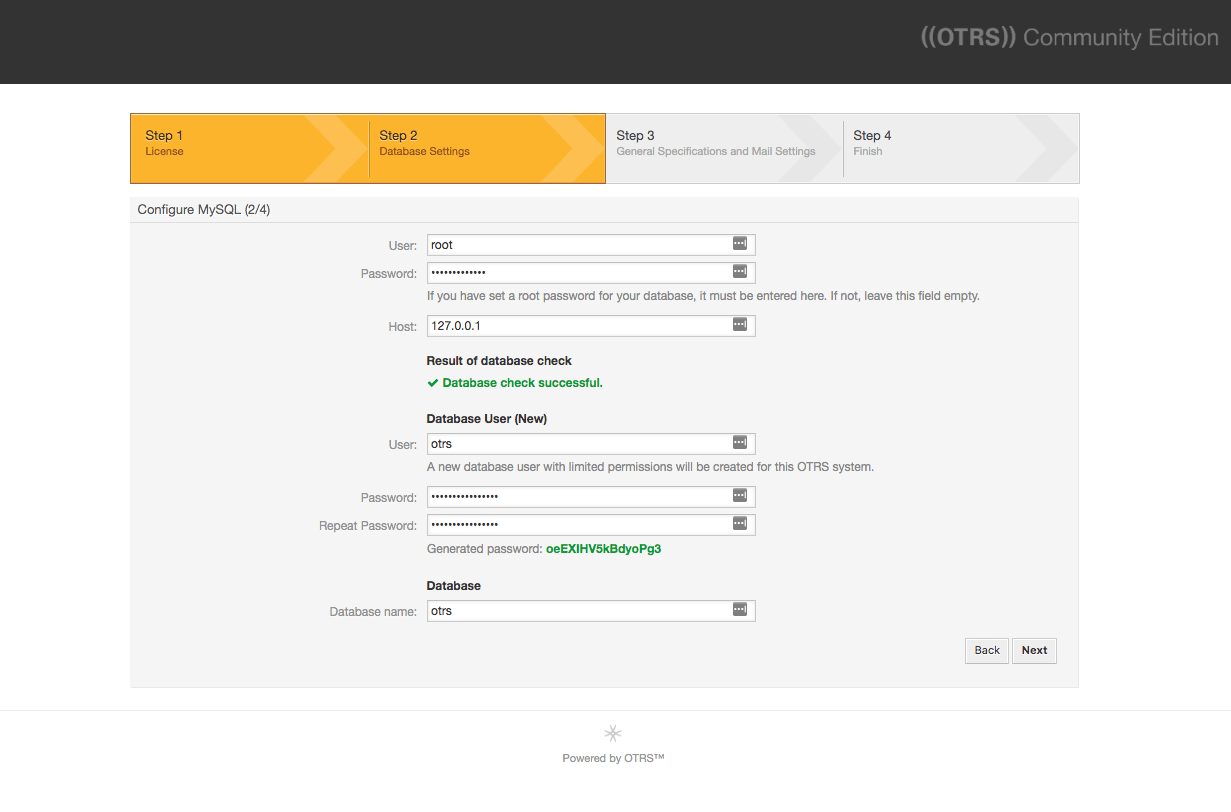

Click Check database settings to make sure it works. The installer will generate credentials for the new database. There is no need to remember this generated password.
Click Next to proceed.

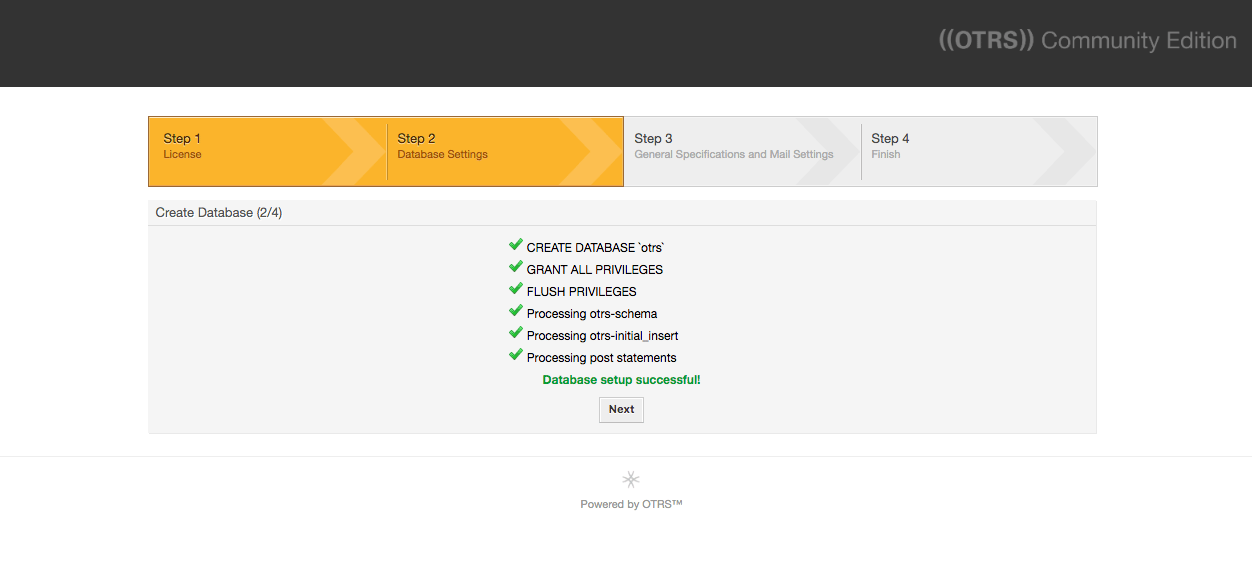

The database will be created and you will see the successful result:
Click Next.

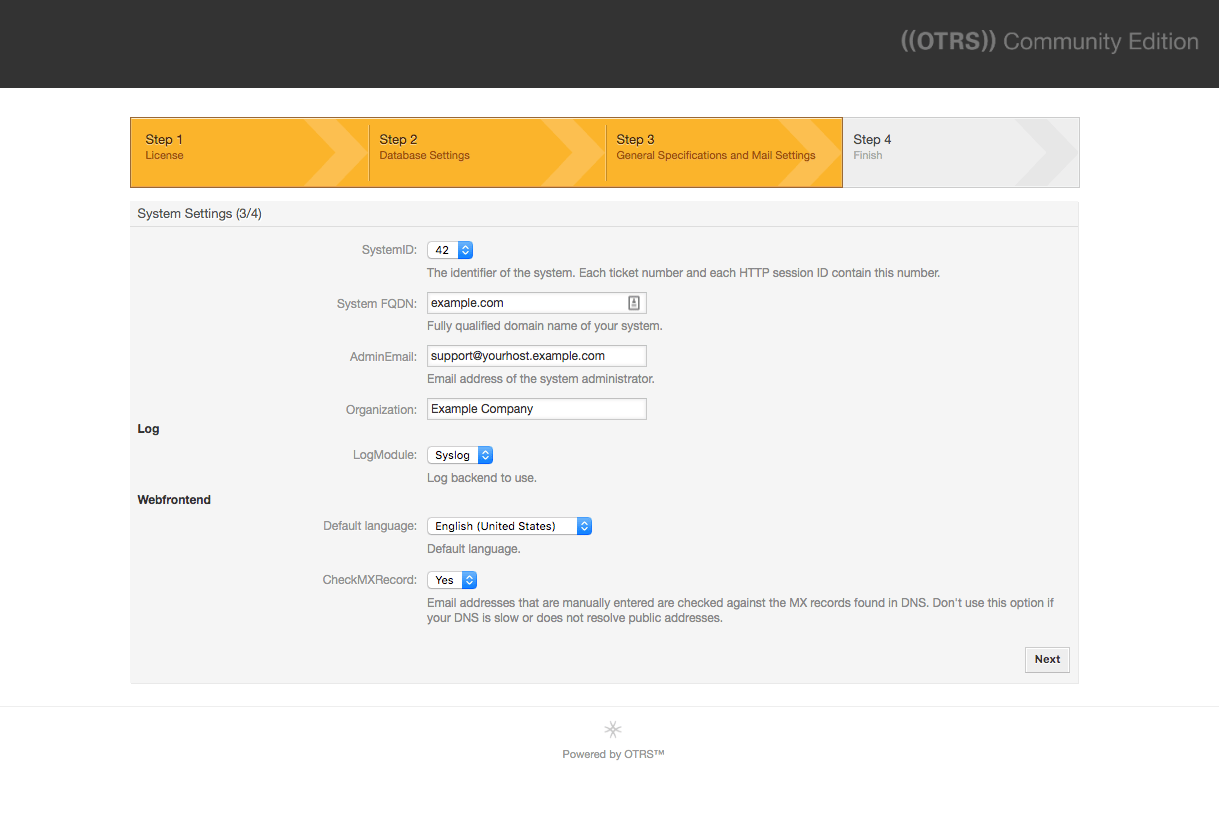

Next, provide the following required system settings:
example.com
with your own domain name.Leave all other options at their default values:
Click Next.
Now you will land on the Mail Configuration page. In order to be able to send and receive emails, you have to configure a mail account. This tutorial will take care of this later in Step 5, so click Skip this step.
The OTRS installation is now complete; you will see a Finished page with a link to the admin panel after Start page, and the credentials of the OTRS super user after that. Make sure you write down the generated password for the root@localhost user and the URL for the Start page.
The only thing left after a successful installation is to start the OTRS daemon and activate its cronjob
.
Bring up the terminal you are using to access your Ubuntu 18.04 server. The OTRS daemon is responsible for handling any asynchronous and recurring tasks in OTRS. Start it with the otrs
user:
- sudo su - otrs -c "/opt/otrs/bin/otrs.Daemon.pl start"
You will see the following output:
OutputManage the OTRS daemon process.
Daemon started
There are two default cron files in the /opt/otrs/var/cron/
directory. Move into this directory.
- cd /opt/otrs/var/cron
These cron files are used to make sure that the OTRS daemon is running. Activate them by copying them without the .dist
filename extension.
- sudo cp aaa_base.dist aaa_base
- sudo cp otrs_daemon.dist otrs_daemon
To schedule these cron jobs, use the script Cron.sh
with the otrs
user:
- sudo su - otrs -c "/opt/otrs/bin/Cron.sh start"
You have now installed OTRS with the web installer and set up its connection to the MySQL database. You also started the OTRS daemon on your server. Next, you will log in to the administrator web interface and secure OTRS.
At the moment, you have a fully functional application, but it’s not secure to use the super user account with OTRS. Instead, you’ll create a new agent. In OTRS, agents are users who have rights to the various functions of the system. In this example, you will use a single agent who has access to all functions of the system.
To get started, log in as root@localhost. Open the Start page link which you received in the previous step. Enter root@localhost for the username and the password you copied from Step 3, then click Login.

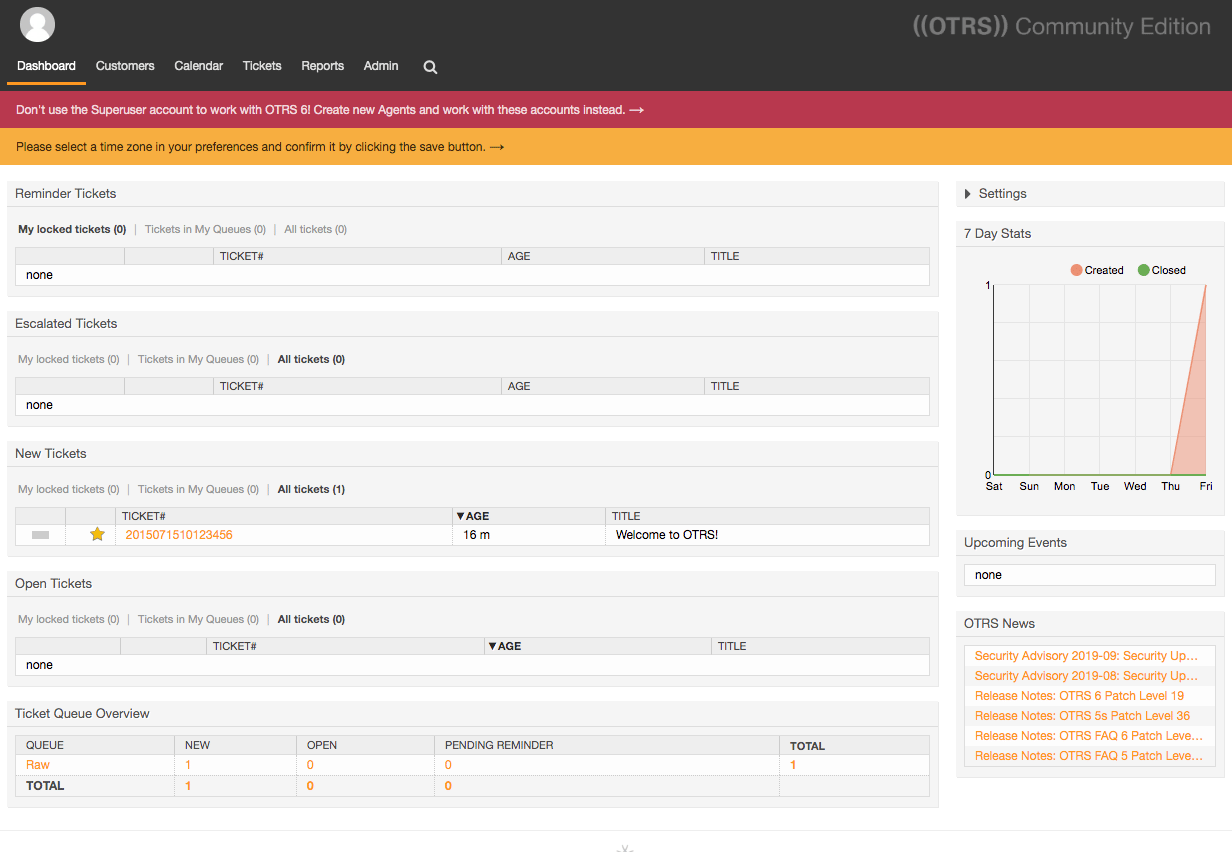

You will see the main dashboard. It contains several widgets which show different information about tickets, statistics, news, etc. You can freely rearrange them by dragging or switch their visibility in settings.

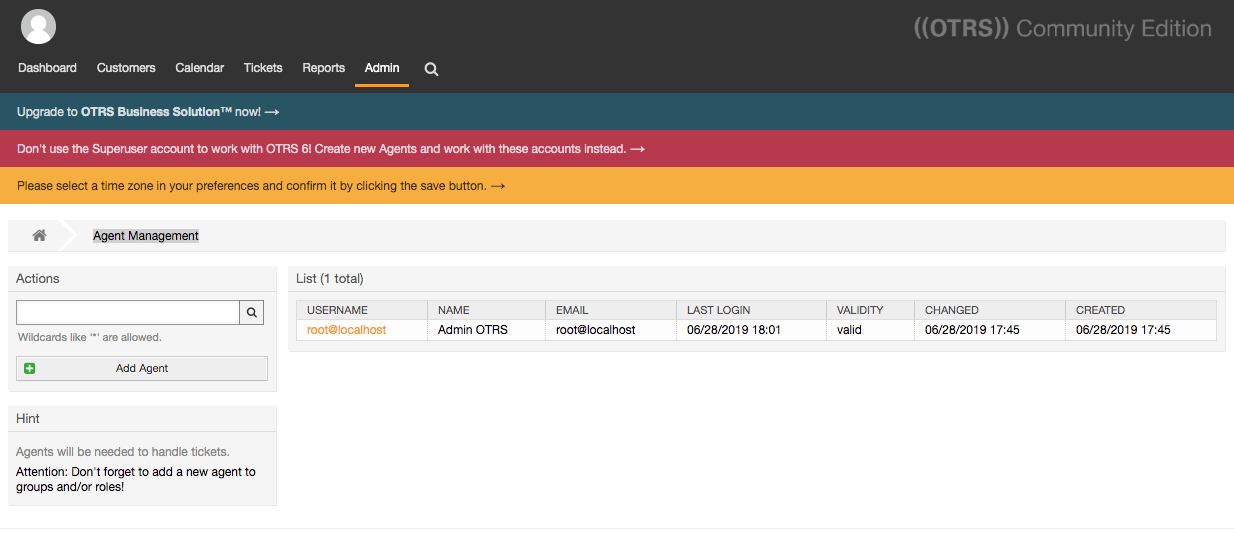

First, create a new agent. To do this, follow the link by clicking on the red message in the top of the screen that reads Don’t use the Superuser account to work with OTRS 6! Create new Agents and work with these accounts instead. This will bring you to the Agent Management screen.
Click the Add agent button. This will bring you to the Add Agent screen. Most of the default options are fine. Fill in the first name, last name, username, password, and email fields. Record the username and password for future login. Submit the form by clicking the Save button.

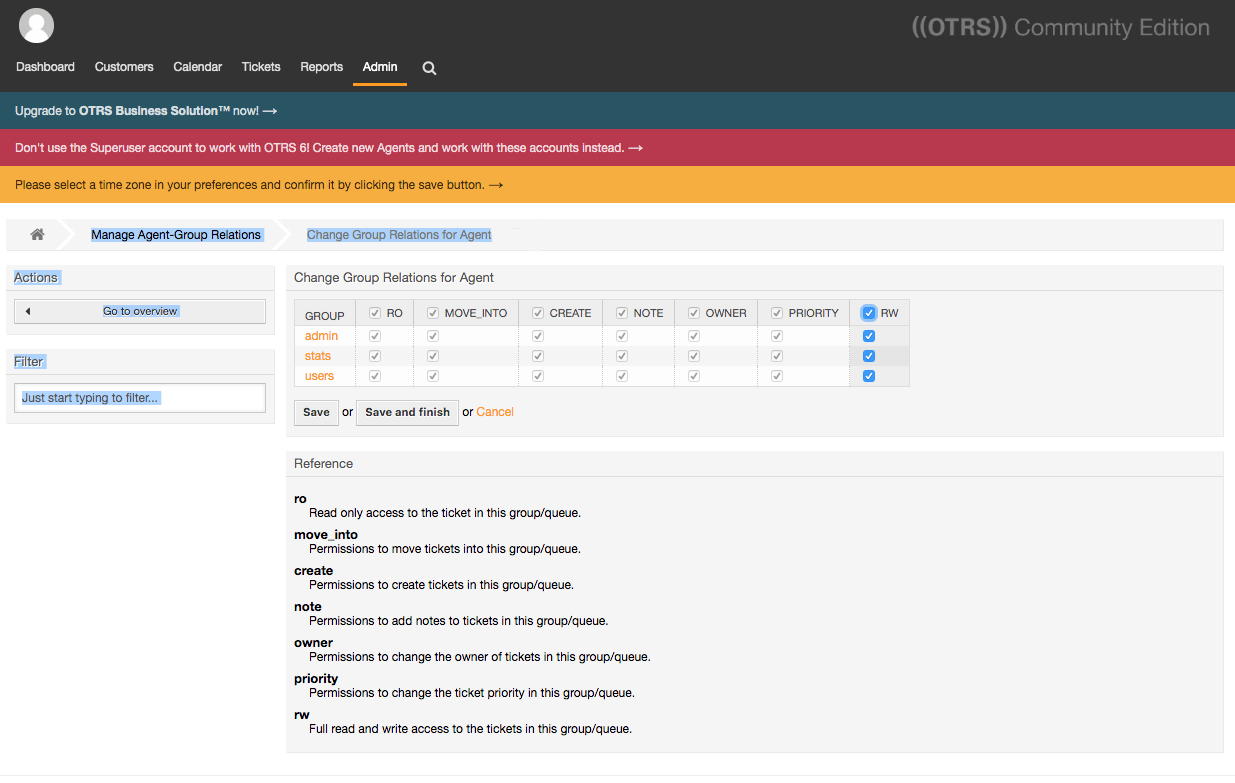

Next, change the group relations for the new agent. Because your agent will also be the administrator, you can give it full read and write access to all groups. To do this, click the checkbox next to RW all the way on the right, under Change Group Relations for Agent.
Finally, click Save and finish.
Now, log out and log back in again using the newly created account. You can find the Logout link by clicking on the avatar picture in the top left corner.
Once you have logged back in, you can customize your agent’s preferences by clicking on Personal preferences in the avatar menu. There you can change your password, choose the interface language, configure setup notifications and favorite queues, change interface skins, etc.
Once you have logged in as your new agent and configured the account to your liking, the next step is to configure the inbound mail options to generate tickets from incoming emails.
Customers have two ways to forward new tickets to OTRS: via the customer front-end or by sending an email. In order to receive customer’s messages you need to set up a POP or IMAP account. In this tutorial, you will use your dedicated OTRS Gmail account that you created as a prerequisite.
Navigate to the Admin tab by clicking on Admin in the top menu. Then find the PostMaster Mail Accounts option and click on it. Press the Add Mail Account button to set up a new mailbox.

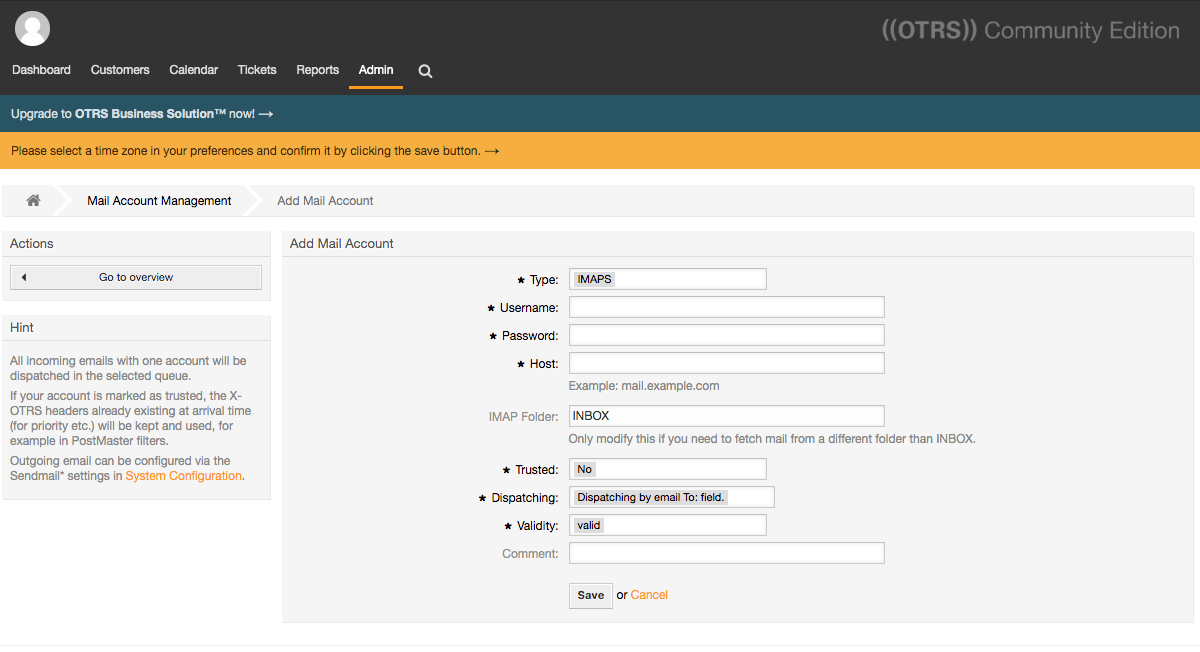

On the Add Mail Account screen, select IMAPS for Type. For Username, type in your Gmail address, and for Password, enter the App password that you generated for your Gmail account in the prerequisites. Leave all other options as default. Click Save.
Note: You can use Gmail for IMAPS without 2-step verification by enabling Less secure app access for your Gmail account. You will find instructions on how to do this in the Google Help Center. However, this method is less secure, and it can take up to 24 hours for Less secure app access to take effect. It is recommended that you use the App password method.
Next, send a test email from an external email account to your dedicated OTRS Gmail account. The mail will be fetched every 10 minutes by the OTRS daemon, but you can force receipt by clicking the Fetch mail link.
As a result, you will see the new ticket.
Now you are ready to accept tickets from customers via email. Next, you will go through the process of creating a ticket through the customer front-end.
The second way for a customer to create a ticket is through the OTRS front-end. In this step, you will walk through this process to make sure this ticket creation method is set up.
The customer front-end is located at https://example.com/otrs/customer.pl
. Navigate to it in a web browser. You can create a customer account there and submit a ticket using the GUI.
Use the Sign up now link to open the registration form.
Fill out the form and press the Create button.
You will see a message like this:
New account created. Sent login information to sammy@gmail.com. Please check your email.
Check your inbox for the message from the OTRS. You will see a message with the new account credentials:
Hi sammy,
You or someone impersonating you has created a new OTRS account for
you.
Full name: sammy
User name: sammy@email.com
Password : Sammy_Password
You can log in via the following URL. We encourage you to change your password
via the Preferences button after logging in.
http://example.com/otrs/customer.pl
Now, use the provided credentials to access the customer front-end and create another ticket. All new tickets created using the customer front-end will immediately appear on the agent’s dashboard:

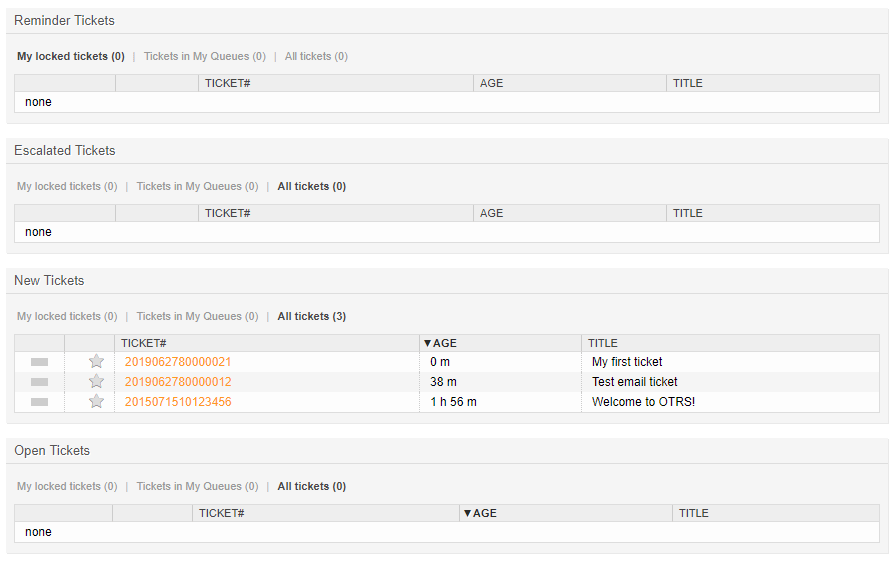

On the agent dashboard, you can see the information on all current tickets: their status (new, opened, escalated, etc.), their age (the time elapsed from the moment when the ticket was received), and subject.
You can click on the ticket number (in the TICKET# column) to view its details. The agent can also take actions on the ticket here, like changing its priority or state, moving it to another queue, closing it, or adding a note.
You have now successfully set up your OTRS account.
In this tutorial, you set up OTRS and created test help desk tickets. Now you can accept and process requests from your users using both the web interface and email.
You can learn more about OTRS by reading the OTRS Admin Manual. If you want to read more about how to use MySQL, see our An Introduction to Queries in MySQL article, or explore DigitalOcean’s Managed Databases product.
Thanks for learning with the DigitalOcean Community. Check out our offerings for compute, storage, networking, and managed databases.
This textbox defaults to using Markdown to format your answer.
You can type !ref in this text area to quickly search our full set of tutorials, documentation & marketplace offerings and insert the link!
Sign up for Infrastructure as a Newsletter.
Working on improving health and education, reducing inequality, and spurring economic growth? We'd like to help.
Get paid to write technical tutorials and select a tech-focused charity to receive a matching donation.
When checking for pl modules, after moving OTRS unpacked files, using this script:
sudo /opt/otrs/bin/otrs.CheckModules.pl
I’ve got “command not found”. Any ideas?Edit: I’ve used this:
instmodsh
to check the installed modules.I’m fairly new on this subject, hence I’m confused whit this:
A fully registered domain name. This tutorial will use
example.com
throughout. You can purchase a domain name on Namecheap, get one for free on Freenom, or use the domain registrar of your choice.The previously created your_domain can’t be used instead?
Does not seem to be compatible with MYSQL 8.O Think it works with MYSQL 7.5
This script doesn’t work: “/opt/otrs/scripts/databases/otrs-schema.mysql.sql” Line 75 CREATE TABLE groups See here: https://github.com/concrete5/concrete5/issues/6156
Is it better to deploy OTRS or we should do web development ourselves and deploy our own script? Is OTRS secure?
This comment has been deleted
